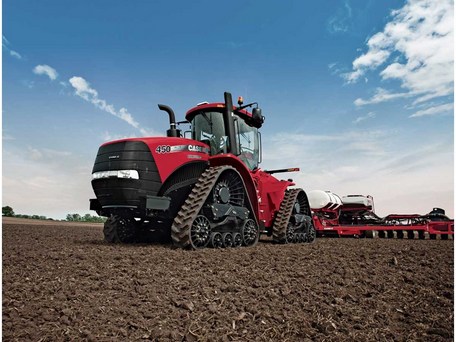

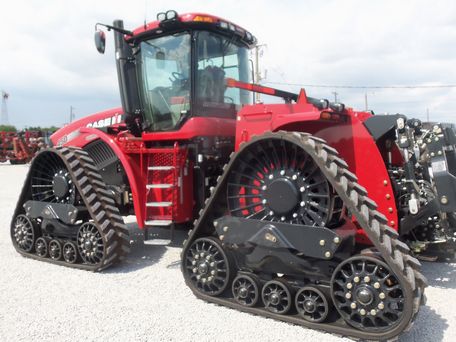

Case IH Steiger 450 Rowtrac
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Agricultural Crawler tractor |
| Factory: | Fargo, North Dakota, USA |
| Original price: | $416,114 (2013 ) |
Case IH Steiger 450 Rowtrac Power | |
| Engine: | 450 hp 335.6 kW |
| PTO (claimed): | 385 hp 287.1 kW |
| Drawbar (tested): | 352.92 hp 263.2 kW |
| PTO (tested): | 453.89 hp 338.5 kW |
Mechanical | |
| Chassis: | articulated crawler |
| Final drives: | inboard planetary |
| Brakes: | wet disc |
| Cab: | Surveyor Cab standard with air-conditioning. |
| Transmission: | 16-speed full power shift |
Hydraulics | |
| Type: | pressure flow compensated |
| Rear valves: | 4 to 8 |
| 5 (with 3-point) | |
| Pump flow: | 42 gpm 159.0 lpm |
| 57 gpm 215.7 lpm (optional) | |
| 113 gpm 427.7 lpm (optional) | |
| SCV flow: | 35 gpm 132.5 lpm |
Tractor hitch | |
| Rear Type: | IVNl IIIN (optional) |
| Control: | lower link draft sensing |
| Rear lift (at 24"/610mm): | 20000 lbs 9072 kg |
| Rear Arms: | fixed |
| Drawbar: | Category 4, Swinging |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 1000 (1.375) |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| turbocharged air-to-air aftercooled diesel | |
| 6 -cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 787 ci 12.9 L |
| Bore/Stroke: | 5.315x5.906 inches 135 x 150 mm |
| Emissions: | Interim Tier 4 |
| Emission control: | selective catalytic reduction (SCR) |
| Power: | 450 hp 335.6 kW |
| Maximum Power: | 495 hp 369.1 kW |
| Fuel system: | electronic unit injector system |
| Cooling system: | variable hydraulic fan |
| Rated RPM: | 2100 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Type: | full power shift |
| Gears: | 16 forward and 2 reverse |
| Clutch: | electro-hydraulic wet disc |
