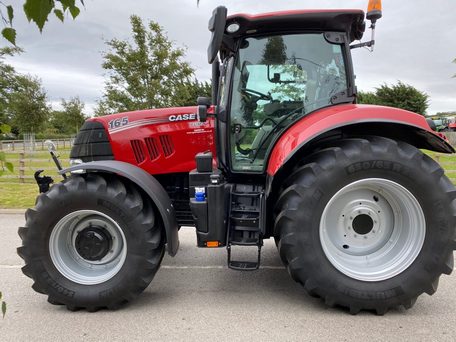

Case IH Puma 165 X

Production: 2018

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	St. Valentin, Austria

Case IH Puma 165 X Power
Engine (gross):	165 hp 123.0 kW
Engine (max):	180 hp 134.2 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	rear standard
Steering:	power
Brakes:	hydraulic wet disc
Trailer brakes:	hydraulic
pneumatic*Optional
Cab:	Cab standard with air-conditioning.
Transmission:	19-speed partial power shift

Hydraulics
Type:	pressure flow compensated
Pressure:	3045 psi 210.0 bar
Rear valves:	4
Mid valves:	3
Pump flow:	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type:	III/II
Control:	electronic draft control
Rear lift (at 24"/610mm):	14586 lbs 6616 kg
Front lift:	7873 lbs 3571 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E/1000 (1.375)
540/1000/1000E (1.375)
Engine RPM:	540@1969 540E@1546 1000@1893 1000E@1621
Front RPM:	1000
Engine RPM:	1000@1895

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
200*Optional
Battery volts:	12

Engine Detail
FPT
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	410.6 ci 6.7 L
Bore/Stroke:	4.09x5.20 inches 104 x 132 mm
Emissions:	Stage IV
Rated Power (ECE R120):	165 hp 123.0 kW
Maximum Power (ECE R120):	180 hp 134.2 kW
Rated RPM:	2200
Torque:	568 lb-ft 770.2 Nm
Torque RPM:	1500
Starter:	electric
Starter volts:	12

Transmission
Type:	partial power shift
Gears:	19 forward and 6 reverse

Dimensions
Rear axle:	Flange
Rear axle:	Bar: 98 inch length 2489 mm
