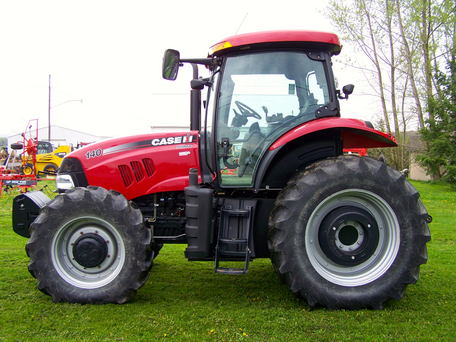

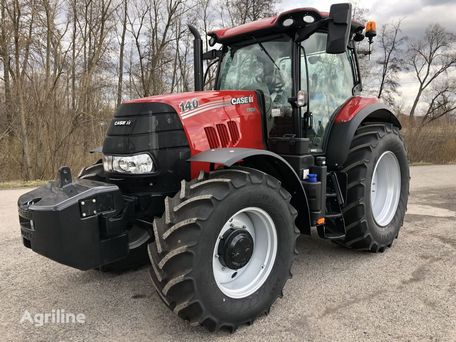

Case IH Puma 140
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Factory: | Basildon, England |
| Original price: | $105,788 (2010 ) |
Case IH Puma 140 Power | |
| Engine (gross): | 140 hp 104.4 kW |
| PTO (claimed): | 120 hp 89.5 kW |
| Drawbar (tested): | 99.9 hp 74.5 kW |
| PTO (tested): | 137.5 hp 102.5 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Trailer brakes: | hydraulic optional |
| Cab: | Cab standard with air-conditioning. Optional suspended cab. |
| Transmissions: | 18-speed partial power shift |
| 19-speed | |
Capacity | |
| Fuel: | 79 gal 299.0 L *Prior to 2010 |
| 75 gal 283.9 L *After 2010 | |
| Hydraulic system: | 19.6 gal 74.2 L |
Hydraulics | |
| Type: | closed center pressure flow compensated (PFC) |
| Capacity: | 19.6 gal 74.2 L |
| Valves: | 2 to 4 |
| Pump flow: | 26.5 gpm 100.3 lpm |
| Total flow: | 43.7 gpm 165.4 lpm |
| Steering flow: | 17 gpm 64.3 lpm |
Tractor hitch | |
| Rear Type: | 2/3N |
| Control: | electronic draft control |
| Rear lift: | 12,185 lbs 5527 kg |
| 15,197 lbs 6893 kg (100mm cylinders) | |
| Rear Arms: | flexible link ends with telescopic stabilizer |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 (1.375) |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 120*Prior to 2010 |
| 150*After 2010 | |
| 200*Optional after 2010 | |
| Battery CCA: | 960 |
| Battery volts: | 12 |
Engine Detail | |
| CNH | |
| turbocharged air-to-air aftercooled diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled inline | |
| Displacement: | 411 ci 6.7 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Emissions: | Tier 3 |
| Power (gross): | 140 hp 104.4 kW |
| Fuel system: | electronic high-pressure common rail |
| Cooling system: | viscous fan |
| Air cleaner: | dual paper elements |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 16 qts 15.1 L |
Dimensions | |
| Wheelbase: | 107.8 inches 273 cm |
| 109.7 inches 278 cm (suspended front axle) | |
| Height (cab): | 118.3 inches 300 cm |
| Shiping weight: | 13,230 lbs 6001 kg |
| Operating weight: | 13,725 lbs 6225 kg |
| Rear axle: | Flange |
| Rear axle: | Bar: 3.625 by 98 inches 92 by 2489 mm |
| Rear axle: | Bar: 3.625 by 112 inches 92 by 2844 mm |
| Front tread: | 61.8 to 89.2 inches 156 to 226 cm |
