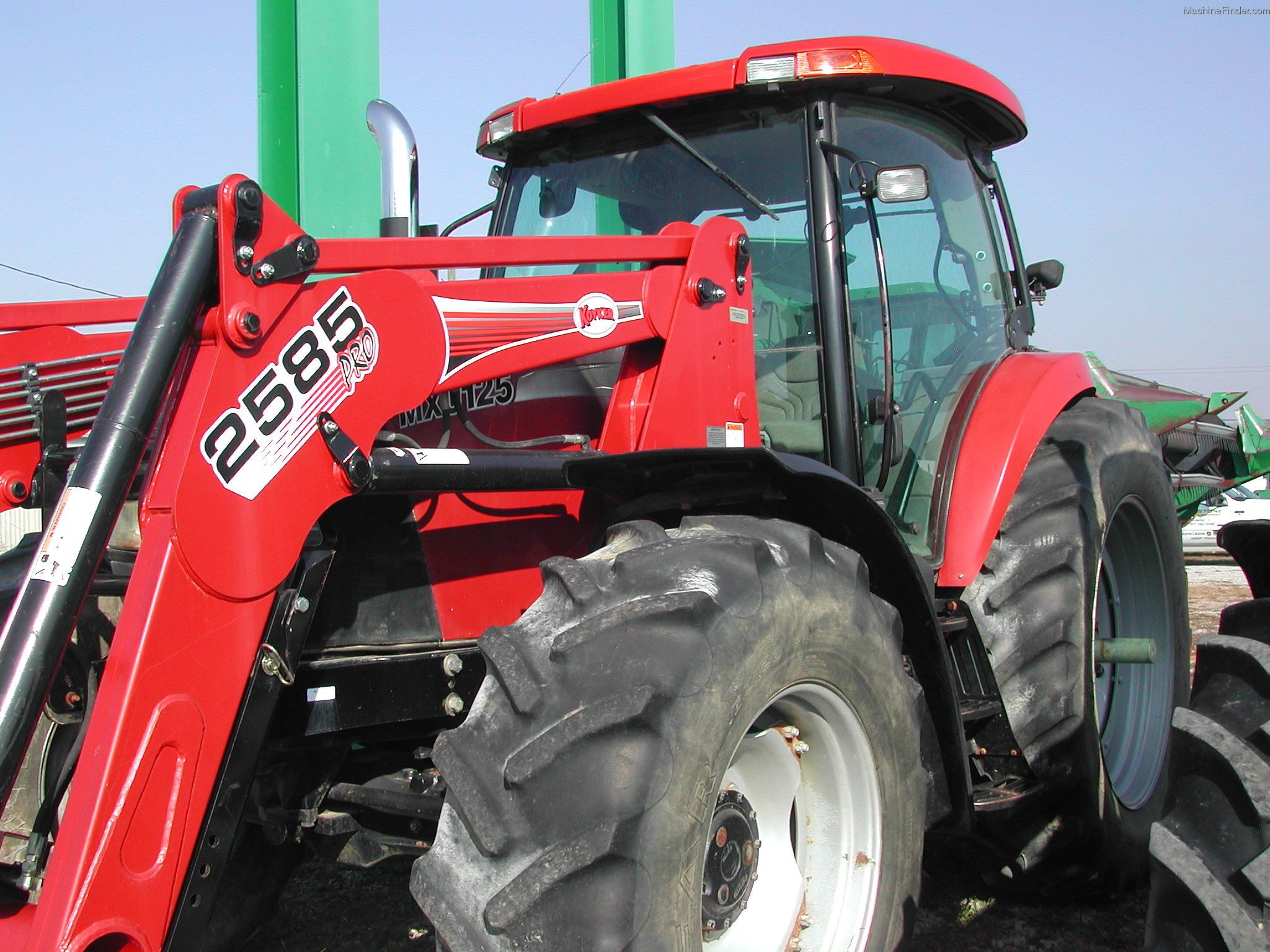

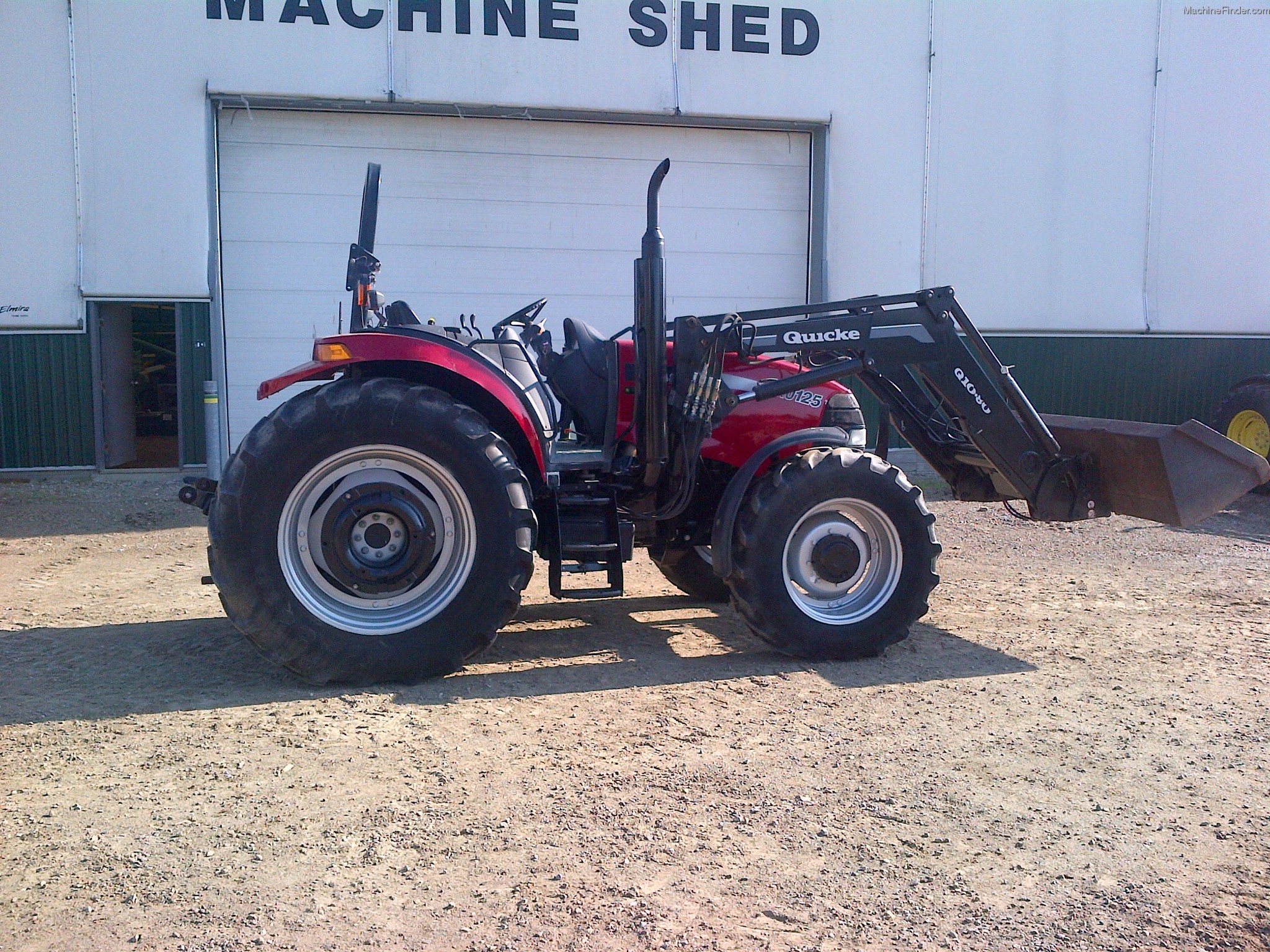

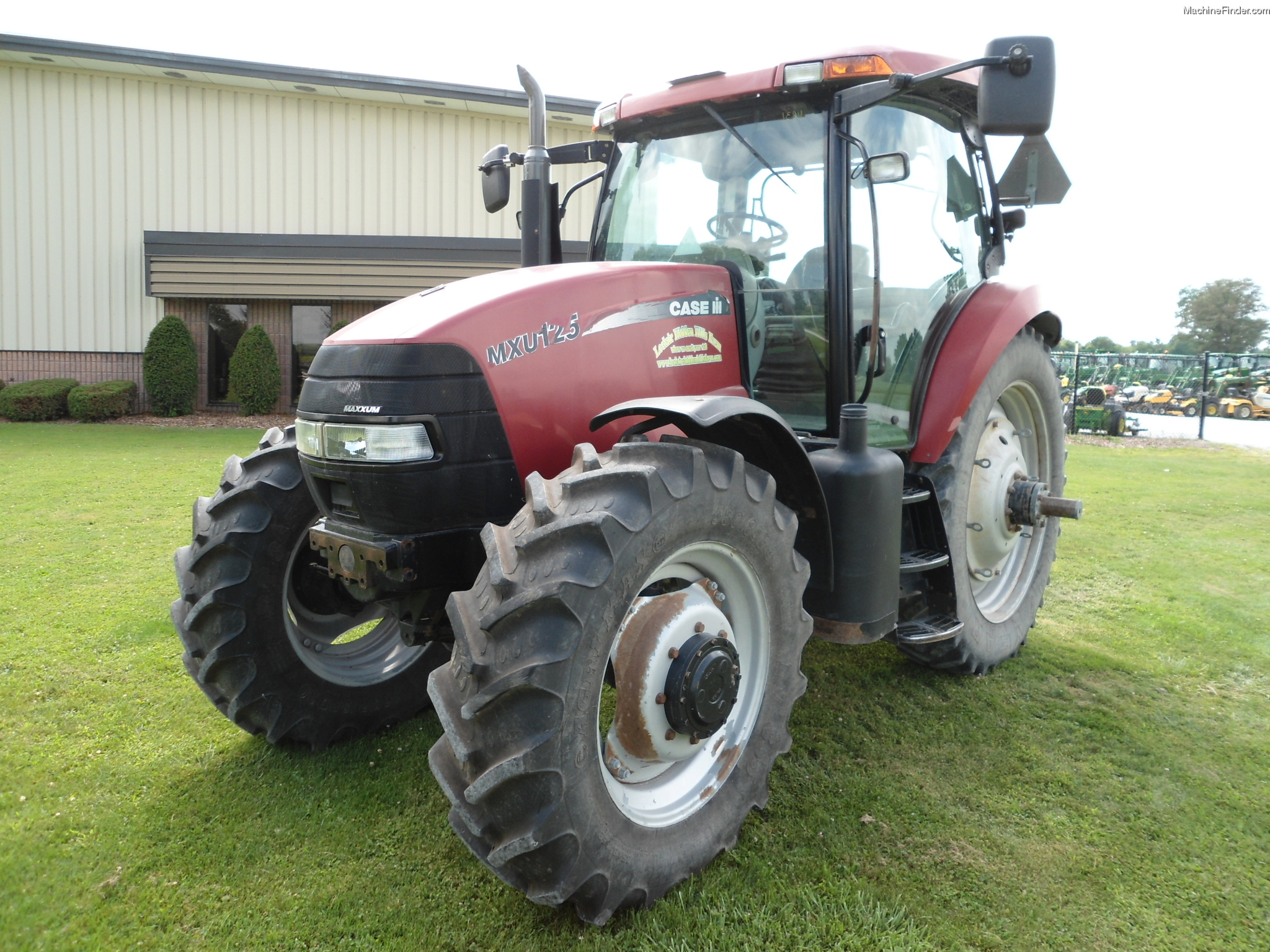

Case IH MXU125
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Factory: | Basildon, England |
| Original price: | $52,400 (2005) |
Case IH MXU125 Power | |
| Engine (gross): | 125 hp 93.2 kW |
| PTO (claimed): | 105 hp 78.3 kW |
| Drawbar (tested): | 88.5 hp 66.0 kW |
| PTO (tested): | 121.2 hp 90.4 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | planetary inboard |
| Differential lock: | electro-hydraulic rear standard |
| front optional | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Two-post ROPS. Cab optional. |
| Transmissions: | 24-speed partial powershift |
| 16-speed partial powershift | |
Hydraulics | |
| Type: | pressure-flow compensated (PFC) optional |
| Pressure: | 2974 psi 205.1 bar |
| 3118 psi 215.0 bar (PFC) | |
| Rear valves: | 2 to 4 |
| Pump flow: | 19.8 gpm 74.9 lpm |
| 26.5 gpm 100.3 lpm (PFC) | |
| Total flow: | 30.3 gpm 114.7 lpm |
| 37 gpm 140.0 lpm (PFC) | |
| Steering flow: | 10.5 gpm 39.7 lpm |
Tractor hitch | |
| Rear Type: | II (ROPS) |
| II/IIIN (cab) | |
| Control: | mechanical lower link (ROPS) |
| electronic draft control (cab) | |
| Rear lift: | 9,285 lbs 4211 kg |
| 12,185 lbs 5527 kg (with cab) | |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electro-hydraulic wet plates |
| Rear RPM: | 540/1000 |
| Engine RPM: | 540@1969 1000@2120 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 70 (ROPS) |
| 120 (cab) | |
| Battery CCA: | 1300 |
| Battery volts: | 12 |
Engine Detail | |
| CNH | |
| turbocharged intercooled diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 410.6 ci 6.7 L |
| Bore/Stroke: | 4.094x5.196 inches 104 x 132 mm |
| Power (gross): | 125 hp 93.2 kW |
| Fuel system: | Bosch electronic direct injection with 8-hole injectors |
| Air cleaner: | dual paper elements |
| Pre-heating: | grid heater |
| Compression: | 17.0:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
Dimensions | |
| 2WD Wheelbase: | 104.4 inches 265 cm |
| 4WD Wheelbase: | 104.7 inches 265 cm |
