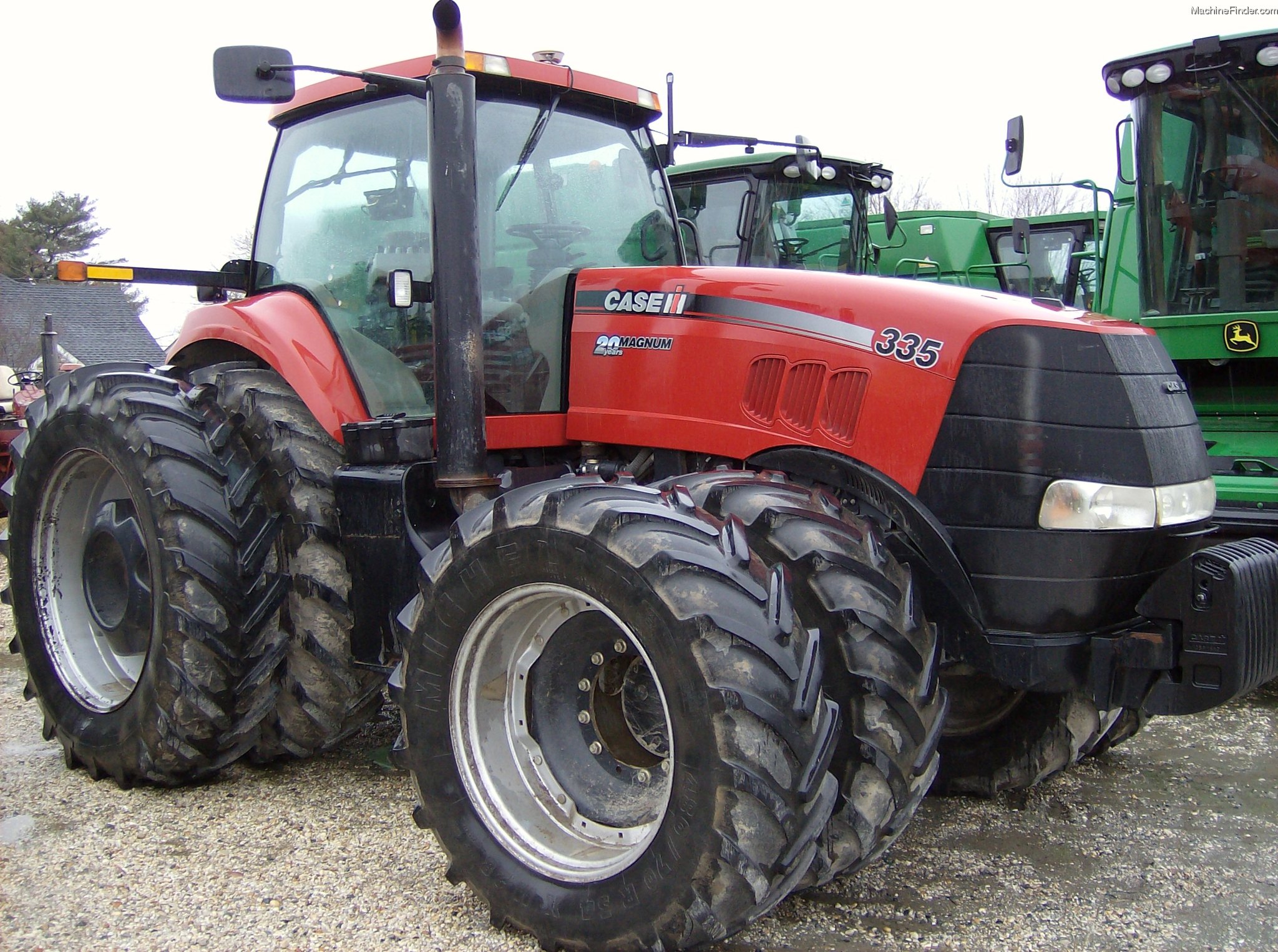

Case IH Magnum 335

Production: 2007 - 2011

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Racine, Wisconin, USA

Case IH Magnum 335 Power
Engine (gross):	335 hp 249.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	planetary
Steering:	hydrostatic power
Cab:	Surveyor cab standard with air-conditioning.
Transmissions:	19-speed full power shift
23-speed creeper

Hydraulics
Type:	pressure flow compensating
Valves:	4 or 5
Pump flow:	46.2 gpm 174.9 lpm
62.3 gpm 235.8 lpm (High-Flow)
78.5 gpm 297.1 lpm (Twin Flow)

Tractor hitch
Rear Type:	III/IVN
Rear lift (at 24"/610mm):	16360 lbs 7420 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	1000 (1.75)
540/1000 (1.375)
Engine RPM:	1800@1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
CDC
turbocharged intercooled diesel
6-cylinder 24-valve
liquid-cooled
Displacement:	541.9 ci 8.9 L
Bore/Stroke:	4.488x5.689 inches 114 x 145 mm
Emissions:	Tier III
Rated Power (ECE R120):	335 hp 249.8 kW
Maximum Power:	368 hp 274.4 kW
Fuel system:	common rail
Rated RPM:	2000
Torque:	1155 lb-ft 1566.2 Nm
Torque RPM:	1400
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	118.3 inches 300 cm
Length:	234.3 inches 595 cm
Width:	100.4 inches 255 cm
Height:	128.5 inches 326 cm
Shiping weight:	21090 lbs 9566 kg
Rear axle:	Bar
