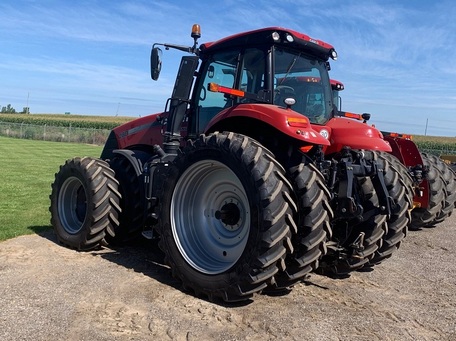

Case IH Magnum 280
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $251,024 (2014 Power Shift ) |
| Original price: | $264,366 (2014 CVT ) |
Case IH Magnum 280 Power | |
| Engine (gross): | 280 hp 208.8 kW |
| Engine (max): | 315 hp 234.9 kW |
| PTO (claimed): | 235 hp 175.2 kW |
| Drawbar (tested): | 213.10 hp 158.9 kW |
| PTO (tested): | 296.56 hp 221.1 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Final drives: | inboard planetary |
| Steering: | power |
| Brakes: | Wet disc |
| Cab: | Cab standard with air-conditioning. AFS ready |
| Transmissions: | 19-speed full power shift |
| 18-speed full power shift | |
| continuously variable transmission (CVT) | |
Hydraulics | |
| Type: | variable displacement pressure-flow compensating (PFC) |
| Valves: | 4 to 6 |
| Pump flow: | 44 gpm 166.5 lpm |
| 59 gpm 223.3 lpm (optional) | |
| 75 gpm 283.9 lpm (optional) | |
Tractor hitch | |
| Rear Type: | III/IIIN |
| III/IVN (optional) | |
| Control: | electronic lower link draft sensing |
| Rear lift (at 24"/610mm): | 12900 lbs 5851 kg |
| 14900 lbs 6758 kg (optional) | |
| Rear Arms: | Adjustable quick coupler |
| Drawbar: | Cat. 3 |
| Cat. 4 (optional) | |
Power Take-off (PTO) | |
| Rear PTO: | Independent |
| Rear RPM: | 1000 (1.75) |
| 540/1000 (1.375 optional) | |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 200 |
| Batteries: | 2 |
| Battery volts: | 12 |
Engine Detail | |
| FPT | |
| wastegate turbocharger diesel | |
| 6-cylinder 24-valve | |
| liquid-cooled | |
| Displacement: | 531 ci 8.7 L |
| Bore/Stroke: | 4.606x5.315 inches 117 x 135 mm |
| Emissions: | Tier IV |
| Emission control: | selective catalytic reduction (SCR) |
| Rated Power (ECE R120): | 280 hp 208.8 kW |
| Maximum Power (ECE R120): | 315 hp 234.9 kW |
| 350 hp 261.0 kW (boost) | |
| Fuel system: | electronic high pressure common rail direct injection |
| Cooling system: | BorgWarner Visctronic fan |
| Rated RPM: | 2000 |
| Starter: | electric |
| Starter volts: | 12 |
Dimensions | |
| Wheelbase: | 120 inches 304 cm |
| 122 inches 309 cm (CVT) | |
| Length: | 247 inches 627 cm |
| Width: | 120 inches 304 cm |
| Height (cab): | 131.5 inches 334 cm |
| Weight: | 28600 lbs 12972 kg |
| Max weight: | 32500 lbs 14742 kg |
| Front axle: | 4WD |
| Front axle: | Suspended 4WD |
| Rear axle: | Bar: 4.0 by 120 inches 101 by 3048 mm |
| Rear axle: | Bar: 4.5 by 120 inches 114 by 3048 mm |
