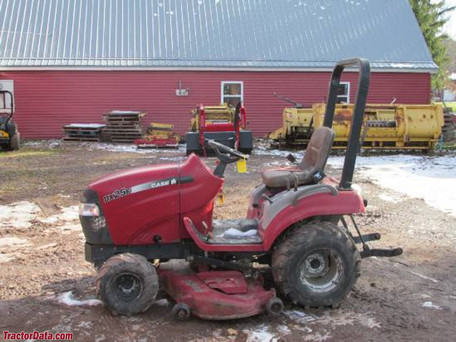

Case IH Farmall DX25E

Production: 2005 - 2007
Type: Sub-compact Utility Tractors

Contents:

Production

Manufacturer:Case IH
Type:Sub-Compact Utility tractor

Case IH DX25E Power

Engine:25 hp 18.6 kW
PTO (claimed):19 hp 14.2 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:power
Cab:Two-post ROPS.
Transmission:hydrostatic

Hydraulics

Type:open center
Pump flow:5.5 gpm 20.8 lpm

Tractor hitch

Rear Type:I
Rear lift:700 lbs 317 kg

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:540

Electrical

Ground:negative
Battery volts:12

Engine Detail

Shibaura ISM-S773
diesel
3-cylinder
liquid-cooled
Displacement:61.3 ci 1.0 L
Bore/Stroke:3.031x2.835 inches 77 x 72 mm
Power:25 hp 18.6 kW
Rated RPM:3000
Starter volts:12

Transmission

Type:hydrostatic
Gears:infinite forward and reverse

Dimensions

Wheelbase:55 inches 139 cm
Weight:1323 lbs 600 kg
