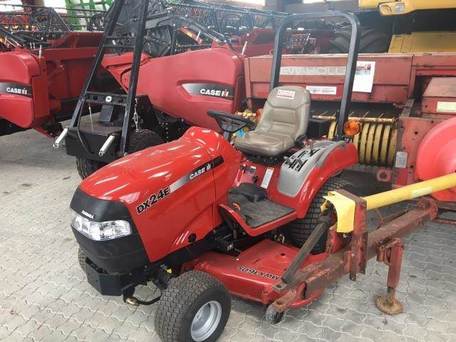

Case IH Farmall DX24

Production: 2004

Production
Manufacturer:	Case IH
Type:	Compact Utility tractor

Case IH Farmall DX24 Power
Engine:	24 hp 17.9 kW
Hydro PTO (claimed):	18.5 hp 13.8 kW
Gear PTO (claimed):	19.5 hp 14.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS. Soft cab optional.
Transmissions:	9-speed gear
hydrostatic

Hydraulics
Total flow:	7.65 gpm 29.0 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1265 lbs 573 kg

Power Take-off (PTO)
Rear RPM:	540
Mid RPM:	2000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Shibaura
diesel
3-cylinder
liquid-cooled
Displacement:	69 ci 1.1 L
Power:	24 hp 17.9 kW
Starter volts:	12

Dimensions
Wheelbase:	57.5 inches 146 cm
Hydro Weight:	1600 lbs 725 kg
Gear Weight:	1502 lbs 681 kg
