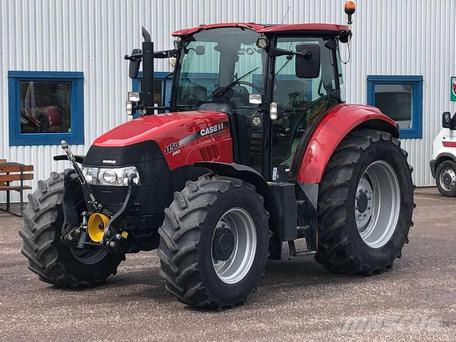

Case IH Farmall 115U

Production: 2013

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Italy
Original price:	$90,922 (2015 )

Case IH Farmall 115U Power
Engine (gross):	115 hp 85.8 kW
PTO (claimed):	98 hp 73.1 kW
Drawbar (tested):	73.0 hp 54.4 kW
PTO (tested):	104.7 hp 78.1 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	inboard planetary
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab with air-conditioning.
Transmissions:	12-speed power shuttle
20-speed creeper power shuttle
24-speed two-speed power shift

Hydraulics
Type:	open center
Valves:	2 to 3
Pump flow:	16.1 gpm 60.9 lpm
21.1 gpm 79.9 lpm *Optional
Steering flow:	10 gpm 37.9 lpm
11.4 gpm 43.1 lpm *Optional

Tractor hitch
Rear Type:	II
Control:	electronic draft control
Rear lift (at ends):	adjustable lbs 0 kg link ends
Rear lift (at 24"/610mm):	6393 lbs 2899 kg
11949 lbs 5420 kg *Optional
Drawbar:	Cat. II, swinging

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540E*Optional

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Battery volts:	12

Engine Detail
FPT
turbocharged intercooled diesel
4-cylinder
liquid-cooled
Displacement:	207.5 ci 3.4 L
Bore/Stroke:	3.898x4.331 inches 99 x 110 mm
Emissions:	Interim Tier IV
Power (gross):	115 hp 85.8 kW
Fuel system:	electronic high-pressure common rail
Pre-heating:	glow plugs
Rated RPM:	2300
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	92.5 inches 234 cm
Length:	164 inches 416 cm
Width:	83 inches 210 cm *Width across fenders.
Height (cab):	103 inches 261 cm
Shiping weight:	9370 lbs 4250 kg
Max weight:	11133 lbs 5049 kg
Rear axle:	Flange
