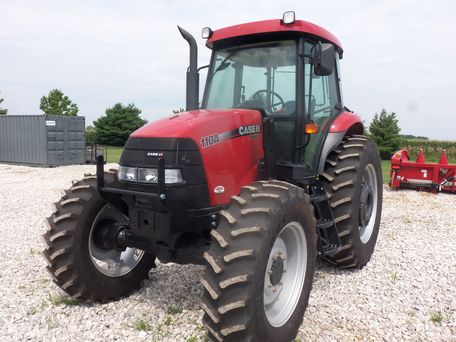

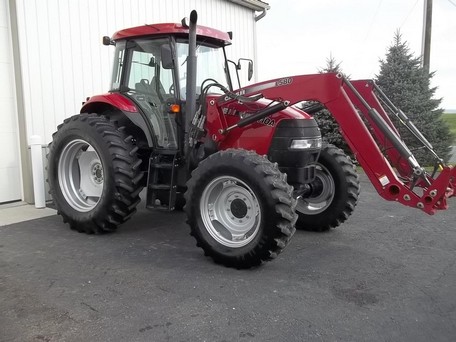

Case IH Farmall 110A

Production: 2012 - 2022

Production
Manufacturer:	Case IH
Type:	Utility tractor

Case IH Farmall 110A Power
Engine (gross):	110 hp 82.0 kW
PTO (claimed):	90 hp 67.1 kW
Drawbar (tested):	81.30 hp 60.6 kW
PTO (tested):	94.17 hp 70.2 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Cab optional with air-conditioning.
Transmissions:	8-speed power shuttle
8-speed synchronized shuttle
16-speed power shuttle

Capacity
Fuel:	40 gal 151.4 L
Hydraulic system:	16.4 gal 62.1 L

Hydraulics
Type:	open center
Capacity:	16.4 gal 62.1 L
Valves:	2 to 4
Pump flow:	22 gpm 83.3 lpm
Total flow:	31 gpm 117.3 lpm
Steering flow:	9 gpm 34.1 lpm

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	7200 lbs 3265 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	120
Battery CCA:	950
Battery volts:	12

Engine Detail
FPT
turbocharged diesel
4-cylinder 8-valve
liquid-cooled
Displacement:	273.7 ci 4.5 L
Bore/Stroke:	4.094x5.197 inches 104 x 132 mm
Emissions:	Tier III
Power (gross):	110 hp 82.0 kW
Fuel system:	mechanical injection
Compression:	17.5:1
Rated RPM:	2200
Starter:	electric
Starter volts:	12
Oil capacity:	11.6 qts 11.0 L

Dimensions
2WD Wheelbase:	101 inches 256 cm
4WD Wheelbase:	99 inches 251 cm
Rear axle:	Flange
Rear axle:	Bar: 3.1 by 98 inches 78 by 2489 mm
