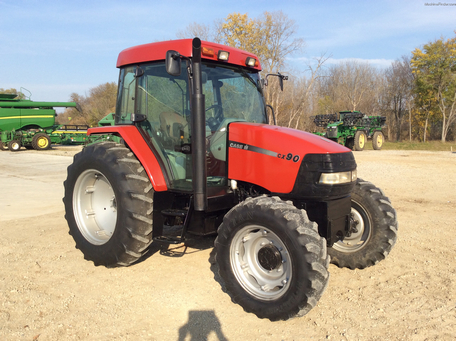

Case IH CX90

Production: 1998 - 2002

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Doncaster, England
Original price:	$32,200 (1999)

Variants

deluxe model

basic model

Case IH CX90 Power
Engine (gross):	90 hp 67.1 kW
Engine (net):	84 hp 62.6 kW
PTO (claimed):	74 hp 55.2 kW
Drawbar (tested):	69.2 hp 51.6 kW
PTO (tested):	79.7 hp 59.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock:	electro-hydraulic
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Two-post ROPS with flat platform. Optional cab with air-conditioning.
Transmissions:	8-speed synchro shuttle
16-speed partial power shift
24-speed creeper

Capacity
Fuel:	42 gal 159.0 L
Hydraulic system:	9.1 gal 34.4 L (2WD)
9.8 gal 37.1 L (4WD)

Hydraulics
Type:	open center
Capacity:	9.1 gal 34.4 L (2WD)
9.8 gal 37.1 L (4WD)
Pressure:	2500 psi 172.4 bar
Valves:	0 to 3
Pump flow:	15.7 gpm 59.4 lpm
Total flow:	24.2 gpm 91.6 lpm (total)
15.7 gpm 59.4 lpm (main pump)
8.5 gpm 32.2 lpm (lube pump)

Tractor hitch
Rear Type:	II/I
Control:	electronic upper link
Rear lift:	3,665 lbs 1662 kg
5,097 lbs 2311 kg (optional)

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540
540/1000 (optional dual shaft)

CX90 Serial Numbers
Location:	Near the tractor steering column on right side.
1998:	JJE1000056
1999:	JJE1008492
2000:	JJE1013490
2001:	JJE1017672
2002:	JJE1019985

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery CCA:	650
810 (optional)
Battery volts:	12

Engine Detail
Perkins 1004.40T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	243.5 ci 4.0 L
Bore/Stroke:	3.93x5.00 inches 100 x 127 mm
Power (gross):	90 hp 67.1 kW
Fuel system:	mechanical direct injection with 5-hole injectors
Air cleaner:	dual paper elements
Compression:	17.25:1
Rated RPM:	2200
Torque:	264 lb-ft 358.0 Nm
Torque RPM:	1400
Starter volts:	12
Oil capacity:	9.3 qts 8.8 L
Oil change:	250 h
Coolant capacity:	16.9 qts 16.0 L

Dimensions
Wheelbase:	92.3 inches 234 cm (2WD)
93.7 inches 237 cm (4WD)
