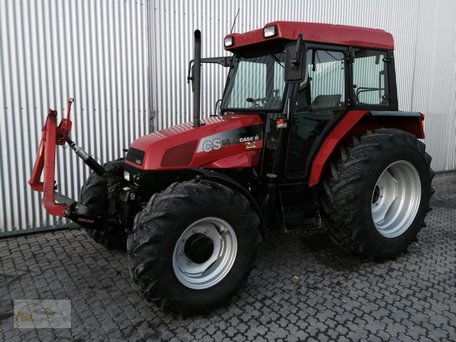

Case IH CS 68
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
Variants | |
| CS68: | 2WD |
Case IH CS 68 Power | |
| Engine: | 68 hp 50.7 kW |
| PTO (claimed): | 64.4 hp 48.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | disc |
| Cab: | Cab standard. |
| Transmission: | 16-speed synchronized |
Hydraulics | |
| Total flow: | 11.4 gpm 43.1 lpm |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 5755 lbs 2610 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 430/540/1000 |
| Engine RPM: | 430@2130 540@2045 540E@1506 1000@2130 |
| Front PTO: | independent |
| Front RPM: | 1000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Battery volts: | 12 |
Engine Detail | |
| MWM 301.89 | |
| turbocharged diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 190.2 ci 3.1 L |
| Bore/Stroke: | 4.13x4.72 inches 105 x 120 mm |
| Power: | 68 hp 50.7 kW |
| Rated RPM: | 2250 |
| Torque: | 195 lb-ft 264.4 Nm |
| Torque RPM: | 1500 |
| Starter volts: | 12 |
Transmission | |
| Type: | synchronized |
| Gears: | 16 forward and 8 reverse |
| Clutch: | dry disc |
| Four gears (1-4) in two ranges, plus reverse, with additional high/low range. | |
Dimensions | |
| Wheelbase: | 87.8 inches 223 cm |
| 2WD Length: | 145.7 inches 370 cm |
| 4WD Length: | 149.2 inches 378 cm |
| Width: | 74.8 inches 189 cm |
| Height (cab): | 99.2 inches 251 cm |
| 2WD Ground clearance: | 14.6 inches 37 cm |
| 4WD Ground clearance: | 15.8 inches 40 cm |
| 2WD Front tread: | 52 inches 132 cm |
| 4WD Front tread: | 60.2 inches 152 cm |
| Rear tread: | 59.5 inches 151 cm |
