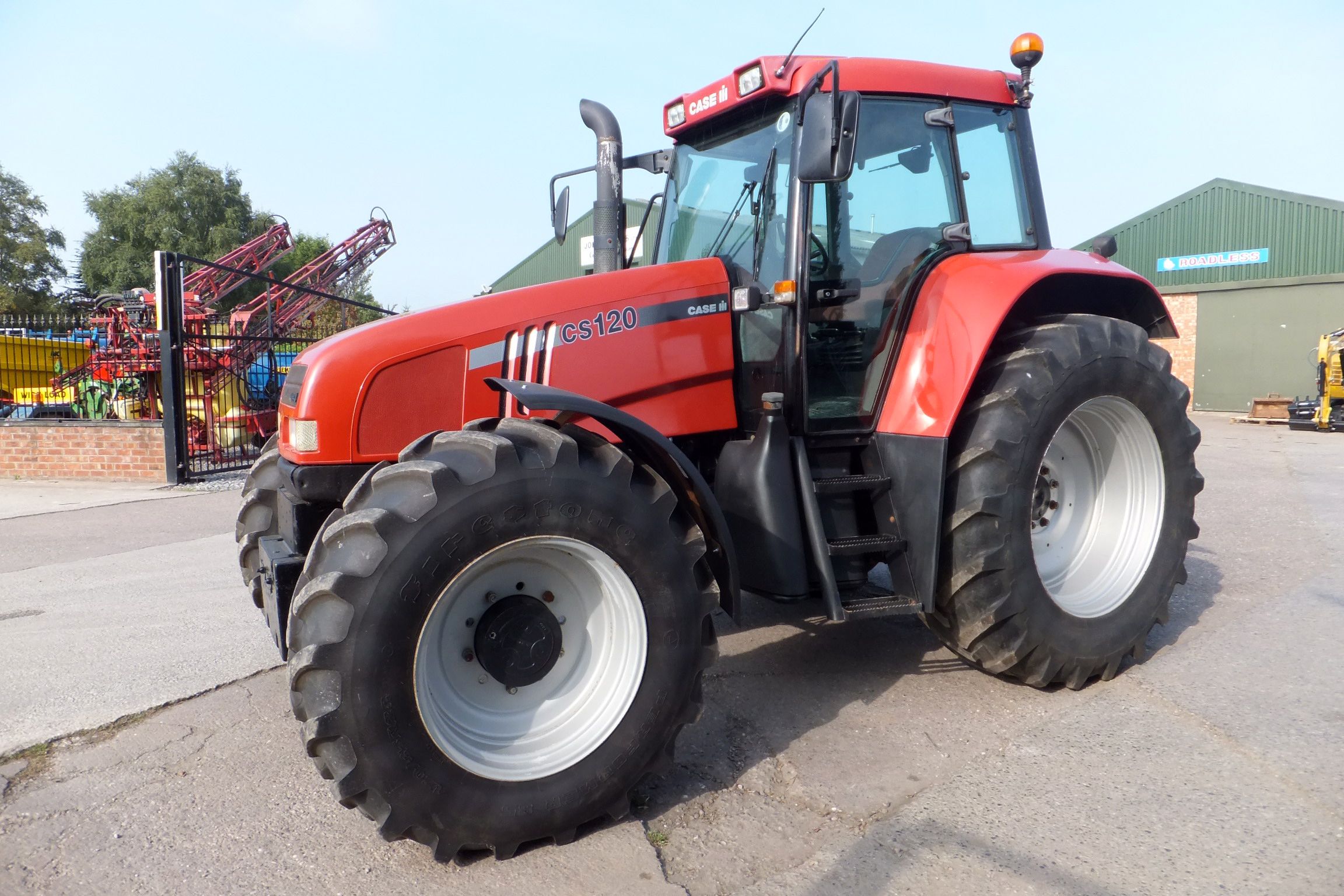

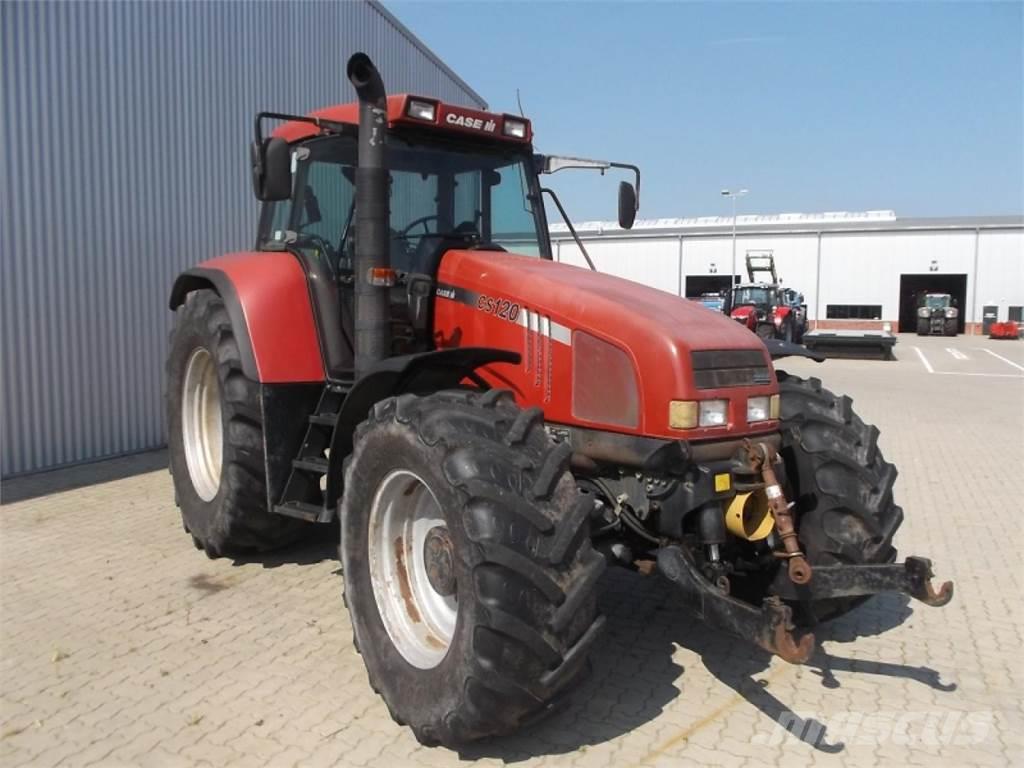

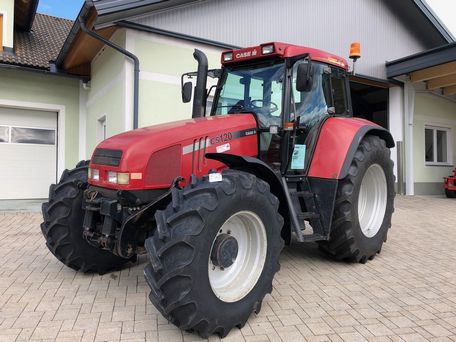

Case IH CS 120

Production: 1997 - 2003

Production
Manufacturer:	Case IH
Type:	Row-Crop tractor
Factory:	Saint Valentin, Austria

Case IH CS 120 Power
Engine (net):	113.4 hp 84.6 kW
PTO (claimed):	101.6 hp 75.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Cab standard with air-conditioning.
Transmissions:	24-speed four-speed power shift
40-speed creeper

Hydraulics
Pressure:	2683 psi 185.0 bar
Pump flow:	21.1 gpm 79.9 lpm
30.4 gpm 115.1 lpm *Optional

Tractor hitch
Rear Type:	III

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000 (1.375)
Engine RPM:	540@2200 540E@1680 1000@2200 1000E@1600
Front RPM:	1000

Engine Detail
Sisu 620.94
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	402.8 ci 6.6 L
Bore/Stroke:	4.25x4.72 inches 108 x 120 mm
Rated Power (ECE R24):	113.4 hp 84.6 kW
Maximum Power (ECE R24):	118.4 hp 88.3 kW
Rated RPM:	2300
Operating RPM:	1700-2300
Torque:	342.2 lb-ft 464.0 Nm
Torque RPM:	1500
Oil capacity:	21.1 qts 20.0 L
Oil change:	250 h

Dimensions
Wheelbase:	110.6 inches 280 cm
Length:	190.2 inches 483 cm
Width:	94.1 inches 239 cm
Height:	111 inches 281 cm
Weight:	11563 lbs 5244 kg
Max weight:	19842 lbs 9000 kg
Ground clearance:	20.9 inches 53 cm
