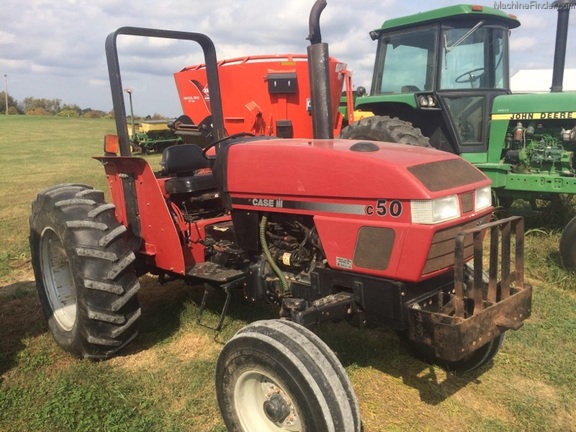

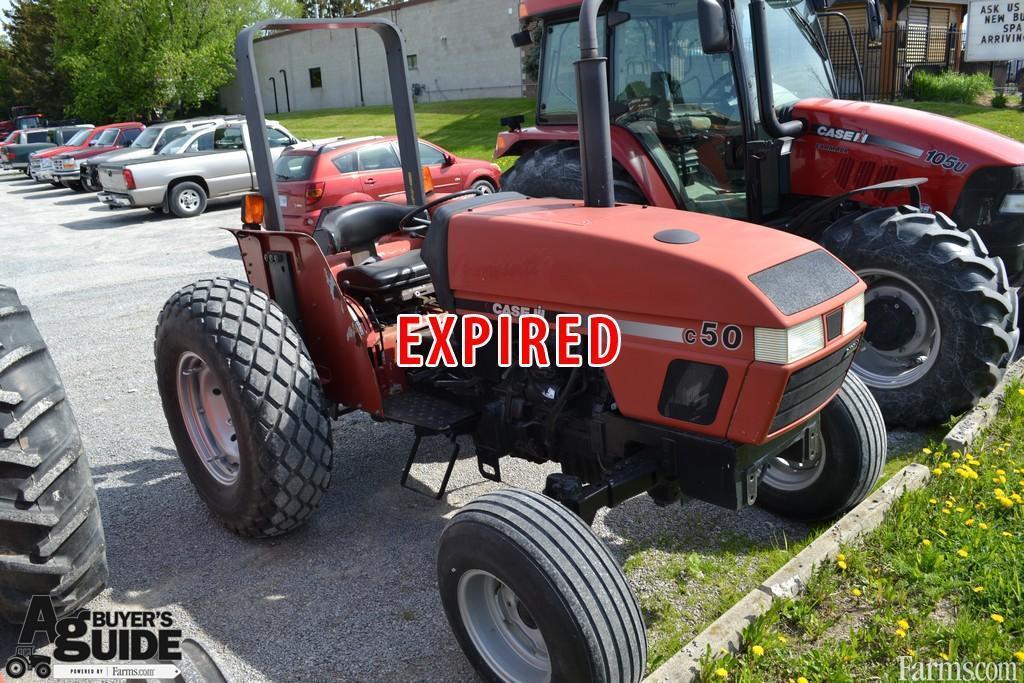

Case IH C50

Production: 1998 - 2002

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Doncaster, England
Original price:	$19,700 (1999)

Variants

deluxe model

basic model

Case IH C50 Power
Engine (gross):	53 hp 39.5 kW
Engine (net):	48 hp 35.8 kW
PTO (claimed):	40 hp 29.8 kW
Drawbar (tested):	35.4 hp 26.4 kW
PTO (tested):	42.5 hp 31.7 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD (optional)
Differential lock:	mechanical
Steering:	hydrostatic power
Brakes:	differential hydraulic wet disc
Cab:	Two-post ROPS with straddle platform.
Transmissions:	8-speed
16-speed partial power shift
16-speed creeper

Capacity
Fuel:	20 gal 75.7 L
Hydraulic system:	9 gal 34.1 L (2WD)
9.7 gal 36.7 L (4WD)

Hydraulics
Type:	open center
Capacity:	9 gal 34.1 L (2WD)
9.7 gal 36.7 L (4WD)
Pressure:	2500 psi 172.4 bar
Valves:	0 to 3
Pump flow:	12.7 gpm 48.1 lpm
Total flow:	15.7 gpm 59.4 lpm

Tractor hitch
Rear Type:	II/I
Control:	mechanical
Rear lift:	3,665 lbs 1662 kg
5,097 lbs 2311 kg (optional)

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic wet disc
Rear RPM:	540
540/1000 (optional dual shaft)

C50 Serial Numbers
Location:	Near the tractor steering column on right side.
1998:	JJE1000056
1999:	JJE1008492
2000:	JJE1013490
2001:	JJE1017672
2002:	JJE1019985

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	65
Battery CCA:	650
810 (optional)
Battery volts:	12

Engine Detail
Perkins 903.27
diesel
3-cylinder
liquid-cooled
Displacement:	165 ci 2.7 L
Bore/Stroke:	3.74x5.00 inches 95 x 127 mm
Power (gross):	53 hp 39.5 kW
Fuel system:	mechanical direct injection with 5-hole injectors
Air cleaner:	dual paper elements
Compression:	17.25:1
Rated RPM:	2250
Torque:	140 lb-ft 189.8 Nm
Torque RPM:	1200
Starter volts:	12
Oil capacity:	8 qts 7.6 L
Oil change:	250 h
Coolant capacity:	12.57 qts 11.9 L

Dimensions
Wheelbase:	80.9 inches 205 cm (2WD)
83.3 inches 211 cm (4WD)
