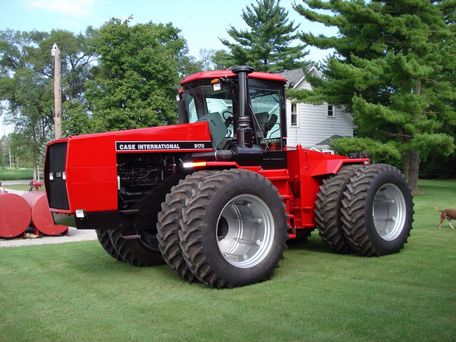

Case IH 9170

Production: 1986 - 1990

Production
Manufacturer:	Case IH
Type:	Four-wheel Drive (4WD) tractor
Factory:	Fargo, North Dakota, USA
Original price:	$119,000 (1990)

Case IH 9170 Power
Engine:	335 hp 249.8 kW
PTO (claimed):	300 hp 223.7 kW

Mechanical
Chassis:	4x4 articulated 4WD
Steering:	hydrostatic power
Cab:	Cab standard.
Transmission:	12-speed full power shift

Capacity
Fuel:	250 gal 946.3 L
Hydraulic system:	26 gal 98.4 L

Hydraulics
Type:	closed center
Capacity:	26 gal 98.4 L
Pressure:	2500 psi 172.4 bar
Valves:	3 to 4
Total flow:	40 gpm 151.4 lpm

Tractor hitch
Optional Rear Type:	IV
Rear lift:	14,000 lbs 6350 kg

Power Take-off (PTO)
Optional Rear PTO:	independent
Rear RPM:	1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Cummins NTA-855
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement:	855 ci 14.0 L
Bore/Stroke:	5.50x6.00 inches 140 x 152 mm
Power:	335 hp 249.8 kW
Rated RPM:	2100
Torque:	1266 lb-ft 1716.7 Nm
Torque RPM:	1400
Starter volts:	12
Oil capacity:	41 qts 38.8 L
Coolant capacity:	66 qts 62.5 L

Transmission
Type:	full power shift
Gears:	12 forward and 2 reverse

Dimensions
Wheelbase:	141.3 inches 358 cm
Length:	279.5 inches 709 cm
Minimum Width:	92.3 inches 234 cm
Duals Width:	163.9 inches 416 cm
Height (exhaust):	149.6 inches 379 cm
Weight:	28,000 lbs 12700 kg
Frame Ground clearance:	19.5 inches 49 cm
