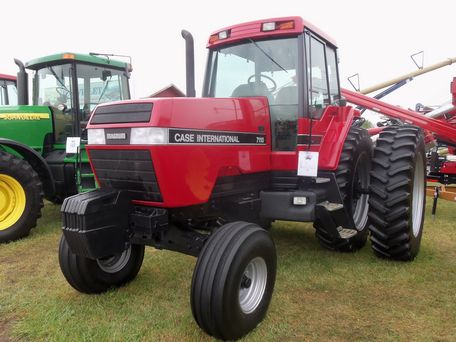

Case IH 7110
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Row-Crop tractor |
| Factory: | Racine, Wisconsin, USA |
| Original price: | $69,000 (1993) |
Case IH 7110 Power | |
| PTO (claimed): | 130 hp 96.9 kW |
| Drawbar (tested): | 116.84 hp 87.1 kW |
| PTO (tested): | 132.31 hp 98.7 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | hydrostatic power |
| Brakes: | differential hydraulic wet disc |
| Cab: | Silent Guardian II Cab standard with air-conditioning. Optional radio/tape deck. |
| Transmissions: | 18-speed full power shift |
| 24-speed powershift with creeper | |
Capacity | |
| Fuel: | 78 gal 295.2 L |
| 95 gal 359.6 L (optional) | |
| Hydraulic system: | 50.5 gal 191.1 L |
Hydraulics | |
| Type: | closed center pressure flow compensated (PFC) |
| Capacity: | 50.5 gal 191.1 L |
| Pressure: | 2600 psi 179.3 bar |
| Valves: | 2 to 4 |
| Pump flow: | 22 gpm 83.3 lpm |
| Total flow: | 29 gpm 109.8 lpm |
Tractor hitch | |
| Rear Type: | III/IIIN |
| Control: | electronic lower link |
| Rear lift (at 24"/610mm): | 7,700 lbs 3492 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | wet disc |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@2229 1000@2200 |
7110 Serial Numbers | |
| Location: | On the floor, inside the tractor's cab. |
| 1987: | 9949001 |
| 1988: | JJA0001501 |
| 1989: | JJA0008528 |
| 1990: | JJA0018838 |
| 1991: | JJA0030160 |
| 1992: | JJA0039300 |
| 1993: | JJA0046350 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 110 |
| Batteries: | 2 |
| Battery CCA: | 950 |
| Battery volts: | 12 |
Engine Detail | |
| CDC | |
| turbocharged diesel | |
| 6-cylinder 12-valve | |
| liquid-cooled vertical inline | |
| Displacement: | 504.5 ci 8.3 L |
| Bore/Stroke: | 4.488x5.315 inches 114 x 135 mm |
| Air cleaner: | dual paper elements |
| Pre-heating: | ether starting aid |
| block heater (optional) | |
| oil pan heater (optional) | |
| Compression: | 17.3:1 |
| Rated RPM: | 2200 |
| Starter volts: | 12 |
| Oil capacity: | 21 qts 19.9 L |
| Oil change: | 250 h |
| Coolant capacity: | 30 qts 28.4 L |
Dimensions | |
| Wheelbase: | 118.3 inches 300 cm |
| Length: | 191 inches 485 cm (2WD) |
| 197.7 inches 502 cm (4WD) | |
| Height (cab): | 118.2 inches 300 cm (2WD) |
| 117.4 inches 298 cm (4WD) | |
| Clearance (front axle): | 22.4 inches 56 cm (2WD) |
| 16.6 inches 42 cm (4WD) | |
| Clearance (drawbar): | 14.7 inches 37 cm |
| Rear axle: | 3.5 by 112 inches 88 by 2844 mm |
| Rear axle: | 3.5 by 96 inches 88 by 2438 mm |
| Front tread: | 60 to 86 inches 152 to 218 cm (2WD) |
| Front tread: | 60 to 95 inches 152 to 241 cm (4WD) |
| Rear tread: | 60 to 125 inches 152 to 317 cm |
| Rear tread: | 60 to 109 inches 152 to 276 cm |
