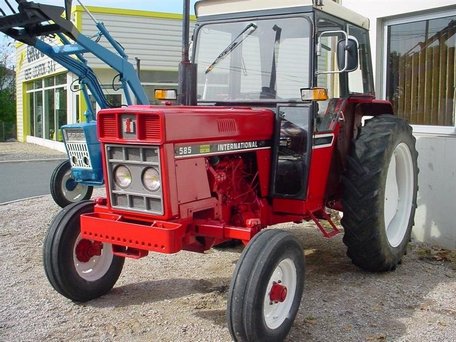

Case IH 585

Production: 1985 - 1990

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Doncaster, England
Original price:	$20,000 (1990 )

Variants

utility

orchard

Case IH 585 Power
Engine:	60 hp 44.7 kW
PTO (claimed):	52 hp 38.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Cab:	Two-post ROPS
Transmissions:	8-speed synchromesh
16-speed

Capacity
Fuel:	20 gal 75.7 L
Hydraulic system:	9 gal 34.1 L

Hydraulics
Type:	open center
Capacity:	9 gal 34.1 L
Valves:	1 or 2
Pump flow:	15.1 gpm 57.2 lpm

Tractor hitch
Rear Type:	II/I
Rear lift (at 24"/610mm):	3210 lbs 1456 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

585 Serial Numbers
1985:	15000
1986:	18000
1987:	19201
1988:	22268
1989:	24954
1990:	27087

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	45
Battery volts:	12

Engine Detail
Case IH
diesel
4-cylinder
liquid-cooled
Displacement:	206 ci 3.4 L
Bore/Stroke:	3.88x4.37 inches 99 x 111 mm
Power:	60 hp 44.7 kW
Rated RPM:	2300
Starter volts:	12

Dimensions
Wheelbase:	78 inches 198 cm
Length:	141.6 inches 359 cm
Width:	73.2 inches 185 cm
Height:	96.5 inches 245 cm
