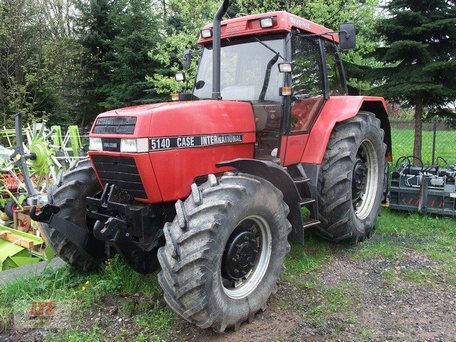

Case IH 5140 Maxxum
Type: Utility Tractors
Contents:
Production | |
| Manufacturer: | Case IH |
| Type: | Utility tractor |
| Factory: | Neuss, Germany |
| Original price: | $34,000 (1991 ) |
Case IH 5140 Power | |
| Engine: | 108.5 hp 80.9 kW |
| PTO (claimed): | 94 hp 70.1 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Differential lock: | electrically activated |
| Steering: | power |
| Brakes: | hydraulic wet disc |
| Cab: | Flat-deck platform with two-post fixed ROPS. Optional canopy or foldable ROPS. Cab optional with air-conditioning. |
| Transmissions: | 16-speed fully synchronized |
| 16-speed partial power shift | |
| 24-speed creeper | |
Hydraulics | |
| Type: | closed center pressure flow compensated |
| Pressure: | 2600 psi 179.3 bar |
| Valves: | 1 to 4 |
| Total flow: | 20.1 gpm 76.1 lpm |
Tractor hitch | |
| Rear Type: | II |
| Control: | lower link |
| Rear lift (at 24"/610mm): | 7,700 lbs 3492 kg |
| Front Hitch: | II (optional) |
| Front lift (at 24"/610mm): | 5,200 lbs 2358 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | hydraulic wet disc |
| Rear RPM: | 540/1000 |
5140 Serial Numbers | |
| Location: | Serial number plate inside the cab on the left. |
| 1990: | JJF1000001 |
| 1991: | JJF1006114 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 65 |
| Battery volts: | 12 |
Engine Detail | |
| CDC | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 359 ci 5.9 L |
| Bore/Stroke: | 4.02x4.72 inches 102 x 120 mm |
| Power: | 108.5 hp 80.9 kW |
| Air cleaner: | dry |
| Rated RPM: | 2200 |
| Idle RPM: | 850-2355 |
| Starter volts: | 12 |
| Oil change: | 250 h |
| Coolant change: | 250 h |
Dimensions | |
| Wheelbase: | 103.7 inches 263 cm (2WD) |
| 101.8 inches 258 cm (4WD) | |
| Length: | 170.6 inches 433 cm (2WD) |
| 174.2 inches 442 cm (4WD) | |
| 2WD ROPS Shiping weight: | 9810 lbs 4449 kg |
| 4WD Cab Shiping weight: | 10826 lbs 4910 kg |
| Clearance (front axle): | 22.1 inches 56 cm (2WD) |
| 18.4 inches 46 cm (4WD) | |
| Rear axle: | 96 inch length 2438 mm |
| Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 60/64/68/72/76/88 inches 152/162/172/182/193/223 cm(flange) |
| Rear tread: | 60 to 100 inches 152 to 254 cm (bar) |
