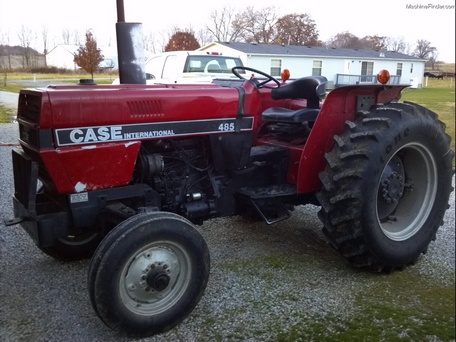

Case IH 485

Production: 1985 - 1991

Production
Manufacturer:	Case IH
Type:	Utility tractor
Factory:	Doncaster, England
Original price:	$16,000 (1990)

Variants

utility

orchard

Case IH 485 Power
Engine:	53 hp 39.5 kW
Drawbar (claimed):	36.7 hp 27.4 kW
PTO (claimed):	43 hp 32.1 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	hydrostatic power
Cab:	Two-post ROPS.
Transmissions:	8-speed synchromesh
16-speed partial power shift

Capacity
Fuel:	20 gal 75.7 L
Hydraulic system:	9 gal 34.1 L

Hydraulics
Type:	open center
Capacity:	9 gal 34.1 L
Valves:	1 or 2
Pump flow:	15.9 gpm 60.2 lpm
17 gpm 64.3 lpm (optional)

Tractor hitch
Rear Type:	I,II
Rear lift:	2,338 lbs 1060 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540

485 Serial Numbers
Location:	Near front axle on right.
1985:	15000
1986:	18000
1987:	19057
1988:	21250
1989:	23490
1990:	24938
1991:	26386

Electrical
Charging system:	alternator
Charging amps:	45

Engine Detail
Case IH
diesel
3-cylinder
liquid-cooled
Displacement:	179 ci 2.9 L
Bore/Stroke:	3.88x5.06 inches 99 x 129 mm
Power:	53 hp 39.5 kW
Compression:	15:1
Rated RPM:	2200
Torque:	134.2 lb-ft 182.0 Nm
Torque RPM:	1400

Dimensions
Wheelbase:	79.6 inches 202 cm
Length:	141.6 inches 359 cm
Width:	73.2 inches 185 cm
Height:	93.5 inches 237 cm
Shiping weight:	5,200 lbs 2358 kg
Max weight:	10,150 lbs 4604 kg
