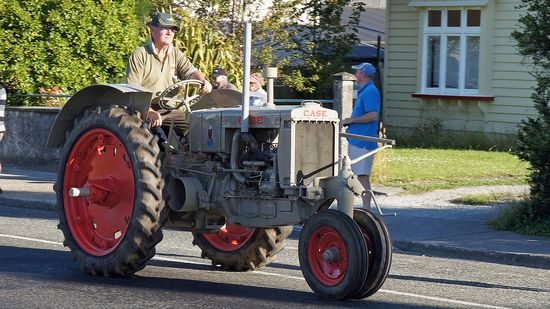

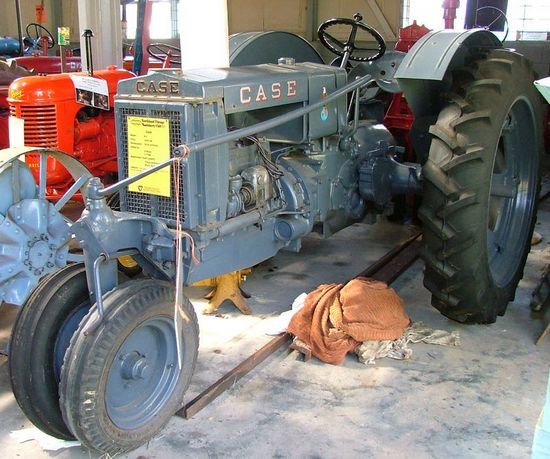

Case RC

Production: 1935 - 1940
Type: Row-crop Tractors

Contents:

Production

Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Total built:15,948

Variants

standard tread
row-crop
RO:orchard

J.I. Case RC Power

Drawbar (claimed):11 hp 8.2 kW
Belt (claimed):17 hp 12.7 kW
Drawbar (tested):14.21 hp 10.6 kW
Belt (tested):19.80 hp 14.8 kW

Mechanical

Chassis:4x2 2WD
Final drives:bull gear
Steering:manual
Cab:Open operator station.
Transmissions:3-speed gear
4-speed gear

Power Take-off (PTO)

Rear RPM:540 (1.125)

RC Serial Numbers

1935:300801
1936:300901
1937:301001
1938:4200001
1939:4300001
1940:4400001

Engine Detail

Waukesha
gasoline
4-cylinder
liquid-cooled vertical L-head
Displacement:132.7 ci 2.2 L
Bore/Stroke:3.25x4.00 inches 83 x 102 mm
Air cleaner:oil bath
Rated RPM:1425
Oil capacity:5 qts 4.7 L
Coolant capacity:17 qts 16.1 L

Dimensions

Length:124.5 inches 316 cm
Width:63 inches 160 cm
Height:44 inches 111 cm
Weight:4045 lbs 1834 kg
Rear tread:44 to 80 inches 111 to 203 cm
