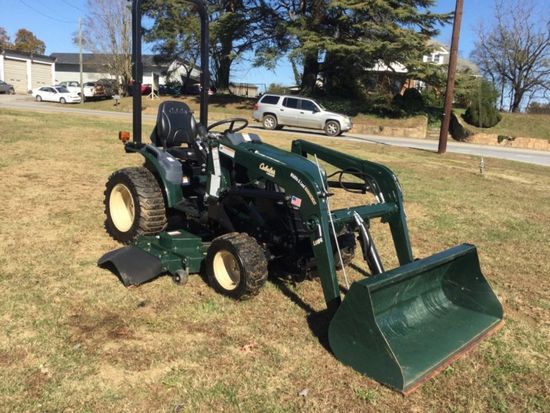

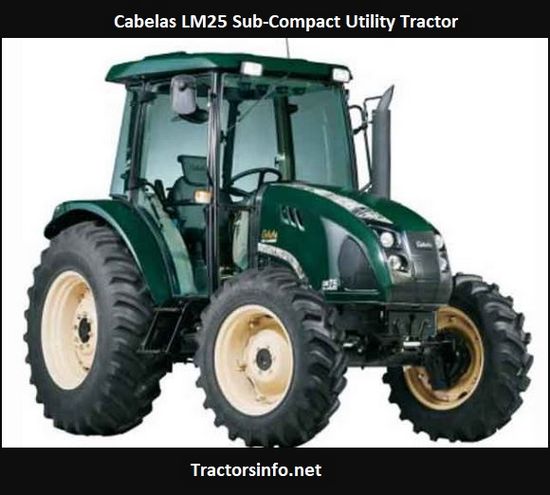

Cabelas LM25

Production: 2014 - 2016

Production
Distributor:	Cabelas
Manufacturer:	TYM
Type:	Sub-Compact Utility tractor
Factory:	South Korea
Original price:	$13,999 (2016 )

Cabelas LM25 Power
Engine (gross):	24 hp 17.9 kW
PTO (claimed):	17.4 hp 13.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post folding ROPS.
Transmission:	hydrostatic

Capacity
Fuel:	5.3 gal 20.1 L
Hydraulic system:	3.8 gal 14.4 L
Front axle:	3.7 qts 3.5 L

Hydraulics
Type:	open center
Capacity:	3.8 gal 14.4 L
Pump flow:	4.5 gpm 17.0 lpm
Total flow:	7.1 gpm 26.9 lpm
Steering flow:	2.64 gpm 10.0 lpm

Tractor hitch
Rear Type:	IN
Control:	position control
Rear lift (at ends):	1323 lbs 600 kg
Rear lift (at 24"/610mm):	992 lbs 449 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540 (1.375)
Mid PTO:	independent

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	50
Battery volts:	12

Engine Detail
Yanmar 3TNV80F
diesel
3-cylinder
liquid-cooled
Displacement:	77.2 ci 1.3 L
Bore/Stroke:	3.15x3.31 inches 80 x 84 mm
Power (gross):	24 hp 17.9 kW
Fuel system:	direct injection
Air cleaner:	dual dry element
Rated RPM:	3000
Starter:	electric
Starter volts:	12
Oil capacity:	4 qts 3.8 L
Coolant capacity:	4.2 qts 4.0 L

Transmission
Type:	hydrostatic
Gears:	infinite (2-range) forward and reverse
Oil capacity:	15.3 qts 14.5 L

Dimensions
Wheelbase:	575 inches 1460 cm
Length:	100.9 inches 256 cm
Width:	45.8 inches 116 cm
Height (ROPS):	92 inches 233 cm
Weight:	1610 lbs 730 kg
Ground clearance:	9.45 inches 24 cm
