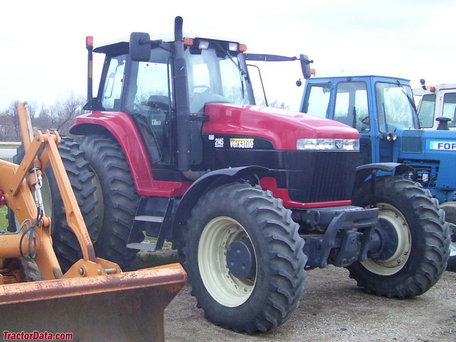

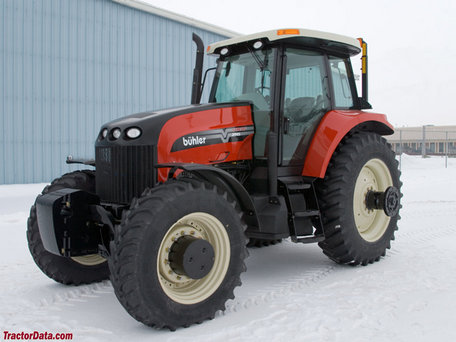

Buhler Versatile 2145
Type: Row-crop Tractors
Contents:
Production | |
| Manufacturer: | Buhler Versatile |
| Type: | Row-Crop tractor |
| Factory: | Winnipeg, Manitoba, Canada |
| Original price: | $99,000 (2008 ) |
| This is the same tractor as the New Holland 8670 | |
Buhler Versatile 2145 Power | |
| Engine: | 195 hp 145.4 kW |
| PTO (claimed): | 145 hp 108.1 kW |
| Drawbar (tested): | 132.1 hp 98.5 kW |
| PTO (tested): | 167.6 hp 125.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Cab standard with air-conditioning. |
| Transmissions: | 16-speed full power shift |
| 18-speed full power shift | |
Capacity | |
| Fuel: | 110 gal 416.4 L |
| Hydraulic system: | 31 gal 117.3 L |
Hydraulics | |
| Type: | closed center load-sensing |
| Capacity: | 31 gal 117.3 L |
| Pressure: | 2900 psi 200.0 bar |
| Valves: | 3 or 4 |
| Total flow: | 30 gpm 113.6 lpm |
| 55 gpm 208.2 lpm *Optional HydraFlow. | |
Tractor hitch | |
| Rear Type: | 3 |
| Control: | electronic draft sensing |
| Rear lift: | 12500 lbs 5670 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | wet disc |
| Rear RPM: | 540/1000 (1.375) |
| Engine RPM: | 540@1878 1000@1903 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 130 |
| Batteries: | 2 |
| Battery CCA: | 950 |
| Battery volts: | 12 |
Engine Detail | |
| New Holland Genesis | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled vertical | |
| Displacement: | 456 ci 7.5 L |
| Bore/Stroke: | 4.40x5.00 inches 112 x 127 mm |
| Emissions: | Tier II |
| Power: | 195 hp 145.4 kW |
| Fuel system: | electronic fuel injection |
| Air cleaner: | dual paper elements |
| Compression: | 17.5:1 |
| Rated RPM: | 2100 |
| Starter volts: | 12 |
| Oil capacity: | 22.5 qts 21.3 L |
| Coolant capacity: | 26 qts 24.6 L |
Dimensions | |
| Standard Steer Wheelbase: | 118.3 inches 300 cm |
| Ultra Steer Wheelbase: | 122.6 inches 311 cm |
| Standard Steer Length: | 200.4 inches 509 cm |
| Ultra Steer Length: | 204.8 inches 520 cm |
| Width: | 112 inches 284 cm |
| Height (cab): | 122 inches 309 cm |
| Height (exhaust): | 124 inches 314 cm |
| Weight: | 16,970 lbs 7697 kg |
| Ground clearance: | 18.6 inches 47 cm |
| Rear axle: | 3.62 by 112 inches 91 by 2844 mm |
| 2WD Front tread: | 61 to 87 inches 154 to 220 cm |
| 4WD Front tread: | 60 to 88 inches 152 to 223 cm |
| Rear tread: | 60 to 124 inches 152 to 314 cm |
