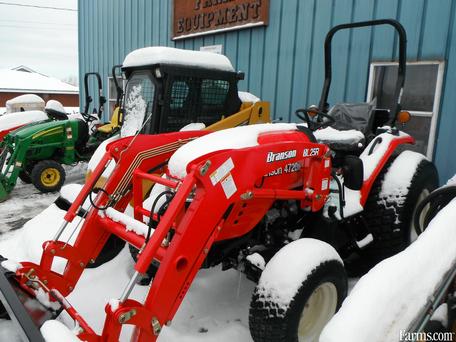

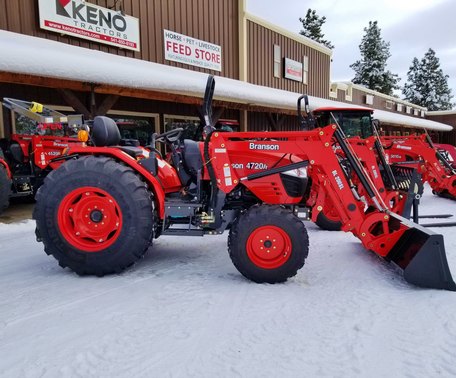

Branson 4720h

Production: 2005

Production
Manufacturer:	Branson

Variants

shuttle shift

hydrostatic

Branson 4720h Power
Engine (gross):	47 hp 35.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	ROPS. Canopy optional.
Transmission:	hydrostatic

Hydraulics
Valves:	0 to 2
Total flow:	8.4 gpm 31.8 lpm

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2,580 lbs 1170 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/540E

Engine Detail
Kukje A2300N2
diesel
4-cylinder
liquid-cooled
Displacement:	139.5 ci 2.3 L
Bore/Stroke:	3.46x3.7 inches 88 x 94 mm
Power (gross):	47 hp 35.0 kW
Air cleaner:	dry element
Pre-heating:	block heater (optional)
Compression:	21.3:1
Rated RPM:	2600
Starter type:	electric

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse

Dimensions
Wheelbase:	71 inches 180 cm
Length:	124 inches 314 cm
Width:	56 inches 142 cm
Height (ROPS):	97 inches 246 cm
Weight:	4,116 lbs 1867 kg
Ground clearance:	12 inches 30 cm
Front tread:	44 inches 111 cm
Rear tread:	43.6 to 59.2 inches 110 to 150 cm
