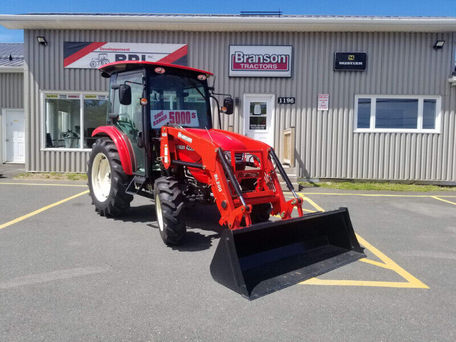

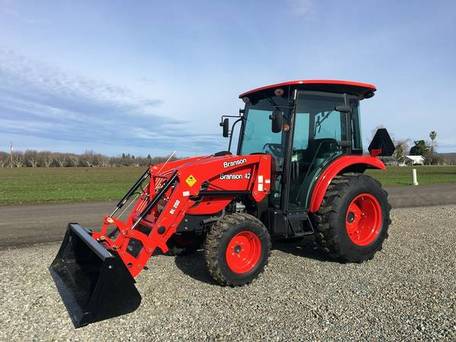

Branson 4225C

Production: 2017

Production
Manufacturer:	Branson (a part of Kukje)
Type:	Compact Utility tractor

Variants
4225R:	ROPS shuttle
4225H:	ROPS hydrostatic
4225C:	Cab shuttle
4225CH:	Cab hydrostatic

Branson 4225C Power
Engine (net):	42 hp 31.3 kW
PTO (claimed):	36 hp 26.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	power
Brakes:	wet disc
Cab:	Cab with air-conditioning.
Transmission:	12-speed shuttle

Capacity
Fuel:	12 gal 45.4 L
Hydraulic system:	10 gal 37.9 L

Hydraulics
Type:	open center
Capacity:	10 gal 37.9 L
Pressure:	2100 psi 144.8 bar
Pump flow:	11.1 gpm 42.0 lpm
Total flow:	16.1 gpm 60.9 lpm
Steering flow:	5 gpm 18.9 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	3306 lbs 1499 kg
Rear lift (at 24"/610mm):	2420 lbs 1097 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic wet disc
Rear RPM:	540/540E (1.375)
Engine RPM:	540@2500 540E@2000

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	70
Battery volts:	12

Engine Detail
Kukje A2000N2-UTR4
diesel
4-cylinder
liquid-cooled
Displacement:	127.2 ci 2.1 L
Bore/Stroke:	3.31x3.70 inches 84 x 94 mm
Emissions:	Tier IV
Air cleaner:	dual dry element
Compression:	21:1
Rated RPM:	2600
Starter:	electric
Starter volts:	12
Oil capacity:	7 qts 6.6 L
Coolant capacity:	6.4 qts 6.1 L

Transmission
Type:	shuttle
Gears:	12 forward and reverse
Clutch:	dry disc
Oil capacity:	40 qts 37.9 L
Four synchronized gears in three ranges.

Dimensions
Wheelbase:	71.1 inches 180 cm
Length:	129 inches 327 cm
Width:	60.2 inches 152 cm
Height (cab):	96.8 inches 245 cm
Shiping weight:	4221 lbs 1914 kg
Ground clearance:	13.1 inches 33 cm
