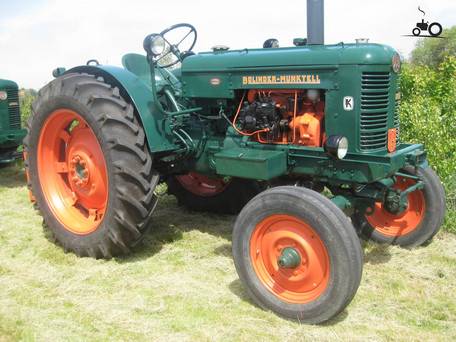

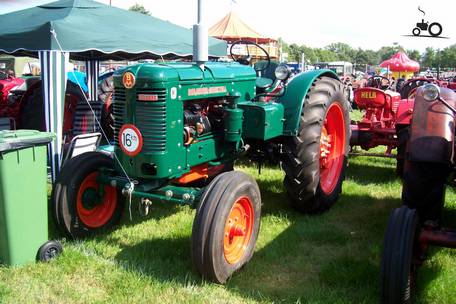

Bolinder-Munktell 36

Production: 1953 - 1954

Production
Manufacturer:	Bolinder-Munktell (a part of Volvo)
Type:	Row-Crop tractor
Total built:	1632

Variants

standard

row-crop

Bolinder-Munktell 36 Power
Engine:	41.9 hp 31.2 kW
PTO (claimed):	37.5 hp 28.0 kW

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	5-speed gear

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	540@1500

Electrical
Charging system:	generator
Battery volts:	12

Engine Detail
Bolinder 1053
diesel
3-cylinder
liquid-cooled
Displacement:	205 ci 3.4 L
Bore/Stroke:	4.13x5.12 inches 105 x 130 mm
Power:	41.9 hp 31.2 kW
Rated RPM:	1800
Starter volts:	12

Transmission
Type:	gear
Gears:	5 forward and 1 reverse

Dimensions
Wheelbase:	79.1 inches 200 cm
Length:	124 inches 314 cm
Width:	66.9 inches 169 cm
Height:	85.8 inches 217 cm
Weight:	5424 lbs 2460 kg
Clearance (front axle):	23 inches 58 cm
Clearance (drawbar):	20.7 inches 52 cm
Front tread:	50.4 to 67.3 inches 128 to 170 cm
Rear tread:	52.8 to 76.4 inches 134 to 194 cm
