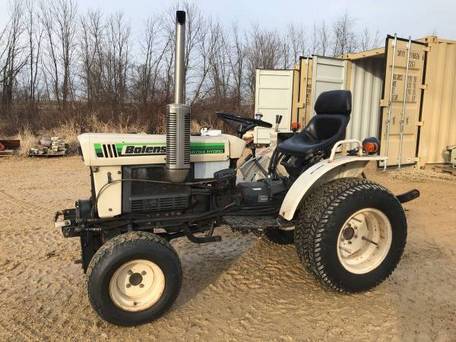

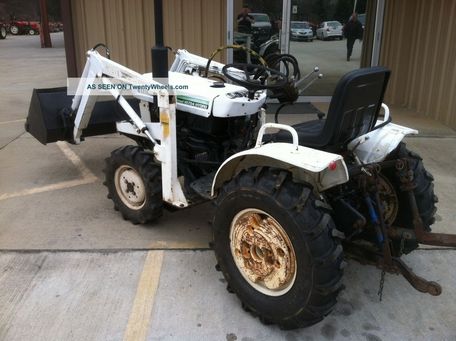

Bolens H1704

Production: 1985 - 1991

Production
Distributor:	Bolens
Manufacturer:	Iseki
Type:	Sub-Compact Utility tractor

Variants

gear drive

hydrostatic

Bolens H1704 Power
Engine:	17 hp 12.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Differential lock:	mechanical standard
Steering:	manual
Brakes:	mechanical internal expanding
Cab:	Open operator station.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Pressure:	1850 psi 127.6 bar
Pump flow:	3 gpm 11.4 lpm

Tractor hitch
Rear Type:	0/1
Control:	position control

Power Take-off (PTO)
Rear RPM:	454/724/1185
Engine RPM:	454@2700 724@2700 1185@2700

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	35
Battery CCA:	305
Battery volts:	12

Engine Detail
Mitsubishi K3B
diesel
3-cylinder
liquid-cooled
Displacement:	51.7 ci 0.8 L
Bore/Stroke:	2.67x3.07 inches 68 x 78 mm
Power:	17 hp 12.7 kW
Air cleaner:	dry element
Pre-heating:	glow plugs
Compression:	22:1
Rated RPM:	2600
Torque:	34.7 lb-ft 47.1 Nm
Torque RPM:	1800
Starter:	electric
Starter volts:	12
Coolant capacity:	4.4 qts 4.2 L

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	13.7 qts 13.0 L

Dimensions
Wheelbase:	50.4 inches 128 cm
Length:	76.8 inches 195 cm
Width:	45 inches 114 cm
Height:	66 inches 167 cm
Ground clearance:	9.8 inches 24 cm
Front tread:	30.1 inches 76 cm
Rear tread:	30.7/35 inches 77/88 cm
