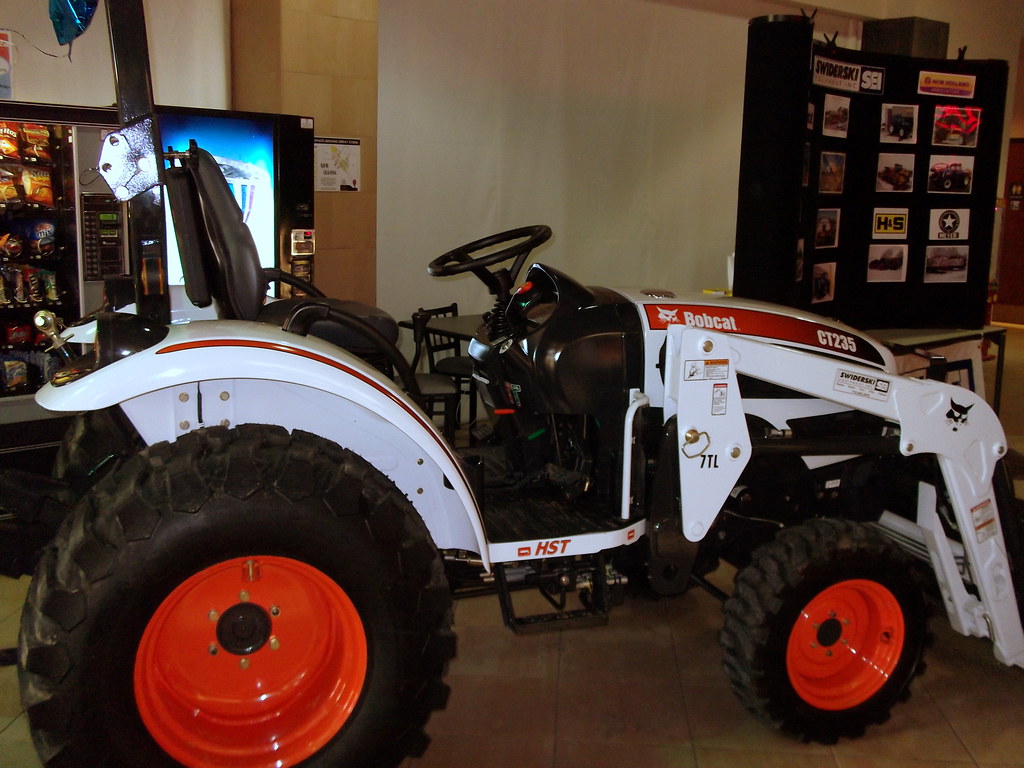

Bobcat CT235

Production: 2008 - 2013

Production
Distributor:	Bobcat
Manufacturer:	Daedong
Type:	Compact Utility tractor
Factory:	Daegu, South Korea

Bobcat CT235 Power
Engine:	34 hp 25.4 kW
PTO (claimed):	26.5 hp 19.8 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	hydrostatic power
Brakes:	integral wet disc
Cab:	ROPS. Cab optional with heat and air-conditioning.
Transmission:	hydrostatic

Hydraulics
Valves:	1 or 2
Pump flow:	7.9 gpm 29.9 lpm
Total flow:	12.2 gpm 46.2 lpm
Steering flow:	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type:	I
Rear lift (at 24"/610mm):	1,508 lbs 684 kg

Power Take-off (PTO)
Rear PTO:	live
Rear RPM:	540
Mid PTO:	optional
Mid RPM:	2000

Engine Detail
Daedong
diesel
3-cylinder
liquid-cooled
Displacement:	97.6 ci 1.6 L
Power:	34 hp 25.4 kW

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and infinite reverse

Dimensions
Wheelbase:	66.1 inches 167 cm
Length:	122.2 inches 310 cm
Width:	55.4 inches 140 cm
Height (ROPS):	95.9 inches 243 cm
Height (cab):	94.3 inches 239 cm
Weight:	3,056 lbs 1386 kg
Ground clearance:	9.9 inches 25 cm
