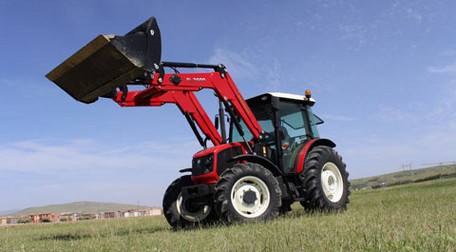

ArmaTrac 602

Production
Manufacturer:	ArmaTrac
Factory:	Ankara, Turkey
The ArmaTrac 602 is the same as the Erkunt Bereket 2x4

ArmaTrac 602 Power
Engine:	57.7 hp 43.0 kW

Mechanical
Chassis:	4x2 2WD
Brakes:	multiple wet disc
Transmission:	16-speed

Hydraulics
Total flow:	10.04 gpm 38.0 lpm
Steering press.:	155.9 psi 10.7 bar

Tractor hitch
Rear lift:	5,291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/750

Engine Detail
Perkins 1103C-33
diesel
3-cylinder
Displacement:	201.4 ci 3.3 L
Bore/Stroke:	4.134x5.00 inches 105 x 127 mm
Power:	57.7 hp 43.0 kW
Air cleaner:	dry with internal prefilter
Compression:	19.25:1
Rated RPM:	2200
Torque:	163.7 lb-ft 222.0 Nm
Torque RPM:	1400
Oil capacity:	7.4 qts 7.0 L

Transmission
Gears:	16 forward and 8 reverse

Dimensions
Wheelbase:	85.8 inches 217 cm
Width:	76.2 inches 193 cm
Height:	101.2 inches 257 cm
Ballasted weight:	6,504 lbs 2950 kg
Ground clearance:	14.2 inches 36 cm
