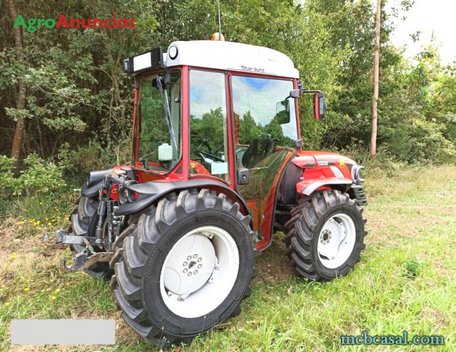

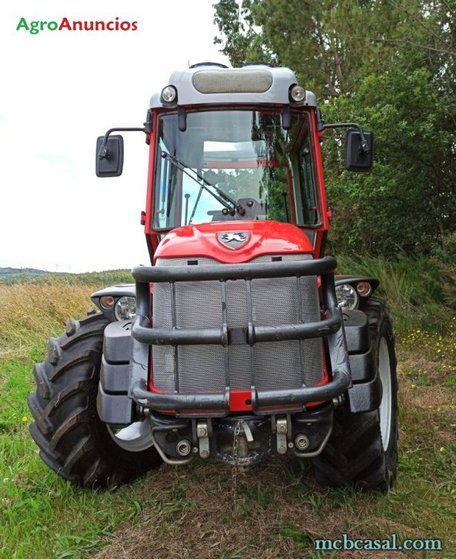

Antonio Carraro TRG 9800

Production
Manufacturer:	Antonio Carraro
Type:	Utility tractor
Factory:	Italy

Antonio Carraro TRG 9800 Power
Engine (gross):	87 hp 64.9 kW

Mechanical
Chassis:	4x4 articulated 4WD
Differential lock:	electro-hydraulic rear
electro-hydraulic front optional
Steering:	hydraulic power
Brakes:	hydraulic wet disc
Cab:	Two-post foldable ROPS. Optional StarLight cab with air-conditioning.
Transmissions:	16-speed
32-speed

Tractor hitch
Rear Type:	II/I
Control:	position and draft control
Rear lift:	5291 lbs 2399 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	electro-hydraulic
Rear RPM:	540/540E (1.375)
Front PTO:	independent (optional)
Front RPM:	1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar
turbocharged diesel
4-cylinder 16-valve
liquid-cooled
Displacement:	202.5 ci 3.3 L
Bore/Stroke:	3.86x4.33 inches 98 x 110 mm
Emissions:	Stage 3A
Rated Power (EC 97/98):	87 hp 64.9 kW
Fuel system:	direct injection
Rated RPM:	2500
Torque:	211.5 lb-ft 286.8 Nm
Torque RPM:	1850
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	63.8 inches 162 cm
Length:	138 inches 350 cm
Width:	55.7 inches 141 cm (min)
Height (ROPS):	96.8 inches 245 cm
Height (cab):	91.5 inches 232 cm
Weight:	5423 lbs 2459 kg (ROPS)
5490 lbs 2490 kg (Cab)
