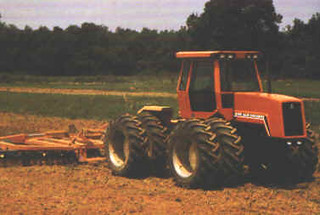

Allis Chalmers 4W-220

Production: 1982 - 1984

Contents:

Production

Manufacturer:Allis Chalmers
Type:Four-wheel Drive (4WD) tractor
Original price:$74,490

Allis Chalmers 4W-220 Power

Engine:220 hp 164.1 kW
PTO (claimed):186 hp 138.7 kW

Mechanical

Chassis:4x4 Articulated 4WD
Cab:Cab standard.
Transmission:20-speed

Tractor hitch

Rear Type:III

Power Take-off (PTO)

Rear PTO:independent
Rear RPM:1000

4W-220 Serial Numbers

Location:Front frame, on rear left side
1982:1001
1983:1081
1984:1145

Engine Detail

Allis Chalmers
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:426 ci 7.0 L
Bore/Stroke:4.25x5.00 inches 108 x 127 mm
Power:220 hp 164.1 kW
Coolant capacity:41 qts 38.8 L

Transmission

Gears:20 forward and 4 reverse

Dimensions

Wheelbase:126 inches 320 cm
Weight:18,064 lbs 8193 kg
