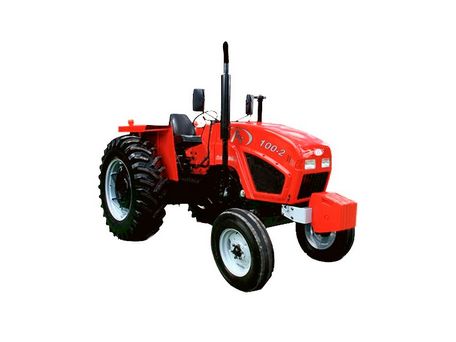

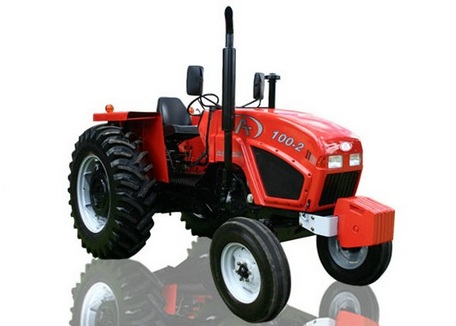

Agrinar T-100
Contents:
Production | |
| Manufacturer: | Agrinar |
| Factory: | Santa Fe, Santa Fe, Argentina |
Agrinar T-100 Power | |
| Engine: | 97.9 hp 73.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Transmission: | 8-speed |
Capacity | |
| Fuel: | 10.2 gal 38.6 L |
| Hydraulic system: | 2.6 gal 9.8 L |
Hydraulics | |
| Capacity: | 2.6 gal 9.8 L |
| Pressure: | 2856.5 psi 197.0 bar |
| Total flow: | 2.4 gpm 9.1 lpm |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Engine Detail | |
| Perkins 6PA305 | |
| diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 305.1 ci 5.0 L |
| Bore/Stroke: | 3.598x5.00 inches 91 x 127 mm |
| Power: | 97.9 hp 73.0 kW |
| Rated RPM: | 2400 |
| Torque: | 243.4 lb-ft 330.1 Nm |
| Torque RPM: | 1500 |
| Oil capacity: | 19.0 qts 18.0 L |
| Coolant capacity: | 21.2 qts 20.1 L |
Transmission | |
| Gears: | 8 forward and 2 reverse |
Dimensions | |
| Weight: | 4580 lbs 2077 kg |
