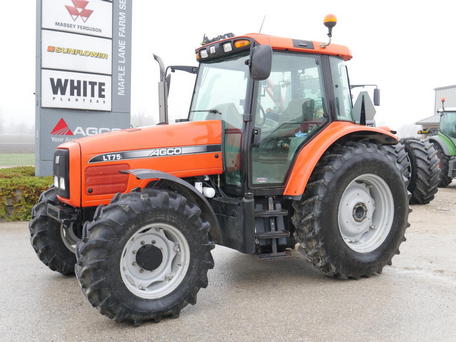

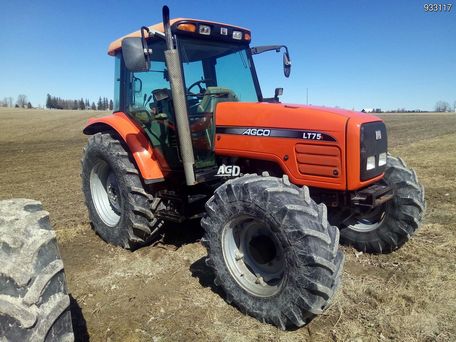

AGCO LT75A

Production: 2006 - 2008

Production
Manufacturer:	AGCO
Type:	Utility tractor

AGCO LT75A Power
Engine:	100 hp 74.6 kW
PTO (claimed):	75 hp 55.9 kW
PTO (tested):	87.1 hp 65.0 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD optional
Steering:	hydrostatic power
Brakes:	wet disc
Cab:	Cab optional
Transmission:	16-speed

Hydraulics
Type:	open center
closed optional
Valves:	2 to 4
Total flow:	26 gpm 98.4 lpm
29 gpm 109.8 lpm (optional)

Tractor hitch
Rear Type:	II
Rear lift (at 24"/610mm):	7,817 lbs 3545 kg
9,189 lbs 4168 kg (optional)

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000
540E/1000E (optional)

Engine Detail
Sisu
turbocharged diesel
4-cylinder
liquid-cooled
Displacement:	268.3 ci 4.4 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Power:	100 hp 74.6 kW
Air cleaner:	paper element with water separator
Compression:	18.5:1
Rated RPM:	2200
Starter volts:	12

Transmission
Transmission:	powershift
Gears:	16 forward and reverse

Dimensions
Wheelbase:	107.5 inches 273 cm
Length:	174 inches 441 cm
Height:	106.5 inches 270 cm
Weight:	8,820 lbs 4000 kg (2WD platform)
9,940 lbs 4508 kg (4WD cab)
