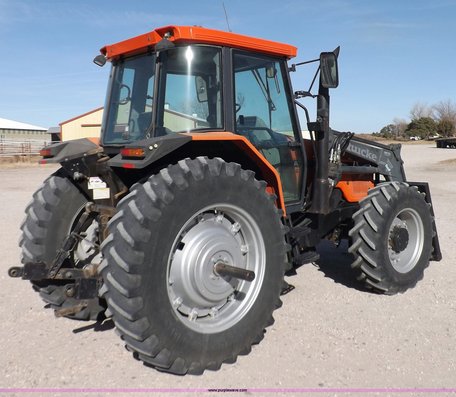

AGCO Allis 8785

Production: 1998 - 1999

Production
Manufacturer:	AGCO Allis (a part of AGCO)
Type:	Row-Crop tractor
Original price:	$54,000 (1999 )

AGCO Allis 8785 Power
PTO (claimed):	110 hp 82.0 kW
PTO (tested):	112.34 hp 83.8 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic wet disc
Cab:	Cab standard. ROPS available.
Transmission:	32-speed four-range power shift

Hydraulics
Type:	closed center
Valves:	2
Pump flow:	27.7 gpm 104.8 lpm

Tractor hitch
Rear Type:	II
Rear lift:	9000 lbs 4082 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

8785 Serial Numbers
Location:	Console, right side
1998:	G01001
1999:	G01001

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Sisu Diesel
turbocharged diesel
6-cylinder
liquid-cooled
Displacement:	402 ci 6.6 L
Bore/Stroke:	4.252x4.724 inches 108 x 120 mm
Air cleaner:	dual dry element
Compression:	16.5:1
Rated RPM:	2200
Starter volts:	12

Transmission
Type:	four-range power shift
Gears:	32 forward and reverse
Clutch:	wet disc

Dimensions
Wheelbase:	112.6 inches 286 cm
Operating weight:	12450 lbs 5647 kg
Rear axle:	Bar
