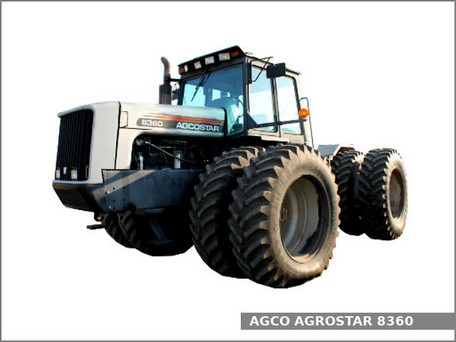

AGCO AGCOSTAR 8360
Contents:
Production | |
| Manufacturer: | AGCO |
| Type: | Four-wheel Drive (4WD) tractor |
| Factory: | Coldwater, Ohio, USA |
| After purchasing McConnell in 1994, AGCO turned the McConnell 900 into the AGCOSTAR 8360. Three paint options were available depending on whether the customer wanted Massey red, Allis orange, or White silver. | |
AGCO 8360 Power | |
| Engine: | 360 hp 268.5 kW |
| Drawbar (tested): | 290.56 hp 216.7 kW |
Mechanical | |
| Chassis: | 4x4 articulated 4WD |
| Steering: | hydrostatic power |
| Brakes: | hydraulic disc |
| Cab: | Cab with heat and air conditioning. |
| Transmission: | 18-speed |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Cummins | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 855 ci 14.0 L |
| Bore/Stroke: | 5.50x6.00 inches 140 x 152 mm |
| Power: | 360 hp 268.5 kW |
| Air cleaner: | dual paper elements with aspirator |
| Compression: | 18.5:1 |
| Rated RPM: | 2100 |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Eaton Fuller |
| Gears: | 18 forward and 2 reverse |
Dimensions | |
| Operating weight: | 29,280 lbs 13281 kg (duals) |
| Ballasted weight: | 32,720 lbs 14841 kg |
