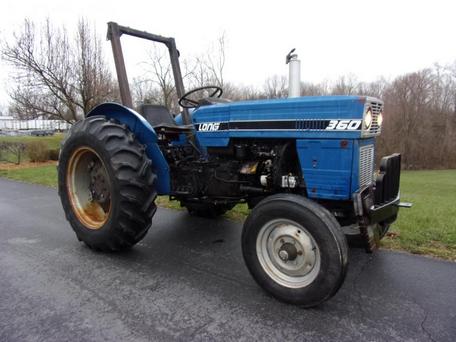

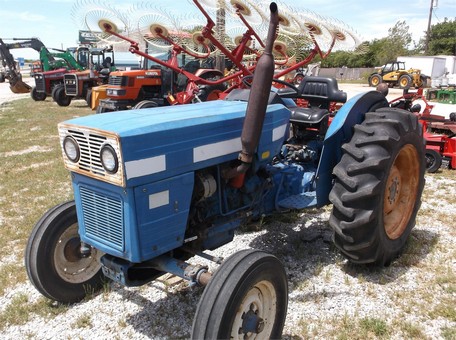

Long 360
Type: Utility Tractors
Contents:
Production | |
| Distributor: | Long |
| Manufacturer: | UTB/Universal |
| Type: | Utility tractor |
| Factory: | Brasov, Romania |
| The Long 360 carried model number 1563. | |
Long 360 Power | |
| Engine: | 38 hp 28.3 kW |
| Drawbar (claimed): | 30 hp 22.4 kW |
| PTO (claimed): | 35 hp 26.1 kW |
| Drawbar (tested): | 31.06 hp 23.2 kW |
| PTO (tested): | 36.16 hp 27.0 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD (optional) | |
| Steering: | manual |
| power optional | |
| Brakes: | independent contracting band |
| Cab: | Open operator station. |
| Transmissions: | 6-speed partially synchronized |
| 8-speed | |
Capacity | |
| Fuel: | 14.25 gal 53.9 L |
| Hydraulic system: | 4.5 gal 17.0 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 4.5 gal 17.0 L |
| Valves: | 1 |
| Total flow: | 5.75 gpm 21.8 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift: | 2650 lbs 1202 kg |
Power Take-off (PTO) | |
| Rear PTO: | live*Two-stage clutch |
| Rear RPM: | 540 |
| Engine RPM: | 540@1970 |
360 Serial Numbers | |
| Location: | Serial number plate on the right side of the tractor, near the brake pedals. |
Electrical | |
| Ground: | negative |
| Battery CCA: | 100 |
| 135*Optional | |
| Battery volts: | 12 |
Engine Detail | |
| Uzina D-115 | |
| diesel | |
| 3-cylinder 6-valve | |
| liquid-cooled | |
| Displacement: | 142.8 ci 2.3 L |
| Bore/Stroke: | 3.74x4.33 inches 95 x 110 mm |
| Power: | 38 hp 28.3 kW |
| Compression: | 17:1 |
| Rated RPM: | 2255 |
| Idle RPM: | 600-2355 |
| Torque: | 96.16 lb-ft 130.4 Nm |
| Torque RPM: | 1590 |
| Firing order: | 1-2-3 |
| Starter volts: | 12 |
| Oil capacity: | 8.25 qts 7.8 L |
| Coolant capacity: | 13.5 qts 12.8 L |
| Intake valve clearance: | 0.0984 inches 2.499 mm (cold) |
| Exhaust valve clearance: | 0.0984 inches 2.499 mm (cold) |
Dimensions | |
| Wheelbase: | 75 inches 190 cm |
| Length: | 113 inches 287 cm |
| Height (steering wheel): | 55.25 inches 140 cm |
| Height (hood): | 53.75 inches 136 cm |
| Ground clearance: | 18 inches 45 cm |
