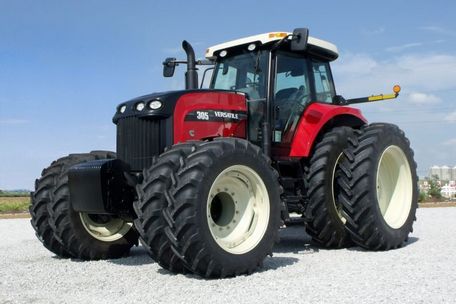

Versatile 305

Production: 2008 - 2011

Production

Manufacturer:Versatile (a part of Rostselmash)
Type:Four-wheel Drive (4WD) tractor
Factory:Winnipeg, Manitoba, Canada

Versatile 305 Power

Engine:305 hp 227.4 kW

Mechanical

Chassis:4x4 articulated 4WD
Final drives:outboard planetary
Differential lock:optional
Steering:hydrostatic power
Brakes:dry caliper
Cab:Cab standard with air-conditioning.
Transmissions:12-speed partiallly synchronized
12-speed full power shift

Capacity

Fuel:250 gal 946.3 L
Hydraulic system:20 gal 75.7 L

Hydraulics

Type:closed center load sensing (CCLS)
Capacity:20 gal 75.7 L
Pressure:2900 psi 200.0 bar
Valves:4 to 6
Pump flow:50 gpm 189.3 lpm

Electrical

Ground:negative
Charging system:alternator
Charging amps:160
Charging volts:12
Batteries:3
Battery CCA:950
Battery volts:12

Engine Detail

Cummins QSM11
turbocharged and air-to-air aftercooled diesel
6-cylinder
liquid-cooled inline
Displacement:661 ci 10.8 L
Bore/Stroke:4.92x5.79 inches 125 x 147 mm
Power:305 hp 227.4 kW
Maximum Power:330 hp 246.1 kW
Torque:1050 lb-ft 1423.8 Nm
Torque RPM:1400
Starter:electric
Starter volts:12
Oil capacity:38.8 qts 36.7 L
Coolant capacity:63.4 qts 60.0 L

Dimensions

Wheelbase:142 inches 360 cm
Length:265 inches 673 cm
Height (cab):143 inches 363 cm
Height (exhaust):146 inches 370 cm
Ground clearance:16.9 inches 42 cm
