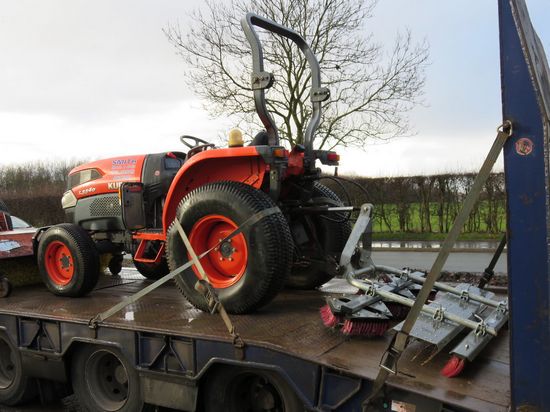

Kubota L3540
Type: Compact Utility Tractors
Contents:
Production | |
| Manufacturer: | Kubota |
| Type: | Compact Utility tractor |
| Original price: | $21,157 (2011) |
| The "semi-independent" mid PTO is linked with the rear PTO. Whenever the mid PTO is engaged, the rear PTO will also be engaged. The rear PTO can be run without the mid PTO. | |
Variants | |
| L3540GST: | gear |
| L3540HST: | hydro |
| L3540HSTC: | hydro cab |
Kubota L3540 Power | |
| Engine (gross): | 37 hp 27.6 kW |
| Engine (net): | 35 hp 26.1 kW |
| Gear PTO (claimed): | 29.5 hp 22.0 kW |
| Hydro PTO (claimed): | 28 hp 20.9 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Differential lock: | standard |
| Steering: | hydrostatic power steering |
| Brakes: | mechanical wet disc |
| Cab: | Two-post ROPS. Grand CAB on L3540HSTC. Optional radio/CD player. |
| Transmissions: | hydrostatic |
| 12-speed | |
Capacity | |
| Fuel: | 11.6 gal 43.9 L |
| Hydraulic system: | 11.1 gal 42.0 L |
| Front axle: | 6.9 qts 6.5 L |
Hydraulics | |
| Type: | open center |
| Capacity: | 11.1 gal 42.0 L |
| Valves: | 2 to 3 |
| Pump flow: | 8.3 gpm 31.4 lpm |
| Total flow: | 13.2 gpm 50.0 lpm |
| Steering flow: | 4.9 gpm 18.5 lpm |

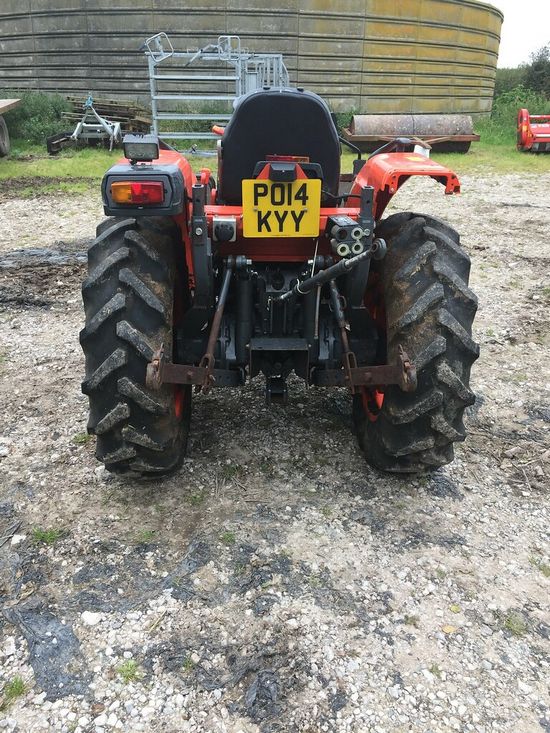

Tractor hitch | |
| Rear Type: | I |
| Rear lift (at ends): | 3,750 lbs 1701 kg |
| Rear lift (at 24"/610mm): | 2.650 lbs 1 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 |
| Engine RPM: | 540@2550 |
| Mid PTO: | semi-independent (optional) |
| Mid RPM: | 2000 |
Electrical | |
| Ground: | negative |
| Charging amps: | 40 |
| 55 (cab) | |
| Battery CCA: | 582 |
| Battery volts: | 12 |
Engine Detail | |
| Kubota | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 111.4 ci 1.8 L |
| Bore/Stroke: | 3.34x4.0 inches 85 x 102 mm |
| Power (gross): | 37 hp 27.6 kW |
| Rated RPM: | 2700 |
| Starter volts: | 12 |
| Oil capacity: | 7.1 qts 6.7 L |
| Coolant capacity: | 7.9 qts 7.5 L |
Dimensions | |
| Wheelbase: | 71.1 inches 180 cm |
| Length: | 115 inches 292 cm |
| Width: | 59.8 inches 151 cm |
| Height: | 90.7 inches 230 cm |
| Weight: | 3,296 lbs 1495 kg (GST) |
| 3,395 lbs 1539 kg (HST) 3,748 (HSTC) | |
| Ground clearance: | 14 inches 35 cm |
| Front tread: | 45.5 inches 115 cm |
| Rear tread: | 47.2 to 58.3 inches 119 to 148 cm |
