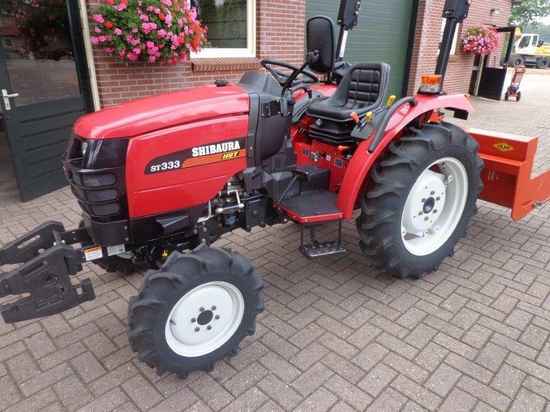

Shibaura ST333

Production: 2016
Type: Compact Utility Tractors

Contents:

PDF

Production

Manufacturer:Shibaura
Type:Compact Utility tractor
Factory:Matsumoto, Japan

Shibaura ST333 Power

Engine:33 hp 24.6 kW
PTO (claimed):28.8 hp 21.5 kW

Mechanical

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:9-speed gear
hydrostatic

Tractor hitch

Rear Type:I
Rear lift:1921 lbs 871 kg

Power Take-off (PTO)

Gear Rear PTO:transmission
Hydro Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@2500
Mid PTO:optional
Mid RPM:2000

Electrical

Ground:negative
Charging system:alternator
Charging amps:40
Battery volts:12

Engine Detail

Shiabaura N843
diesel
3-cylinder
liquid-cooled
Displacement:91.3 ci 1.5 L
Bore/Stroke:3.307x3.543 inches 84 x 90 mm
Power:33 hp 24.6 kW
Compression:22.2:1
Rated RPM:2800
Starter volts:12
Coolant capacity:5.3 qts 5.0 L

Dimensions

Wheelbase:63 inches 160 cm
Length:111.4 inches 282 cm
Hydro Width:57.9 inches 147 cm
Gear Width:53 inches 134 cm
Hydro Weight:2403 lbs 1090 kg
Gear Weight:2458 lbs 1114 kg
Hydro Clearance (front axle):9.5 inches 24 cm
Gear Clearance (front axle):11.2 inches 28 cm
