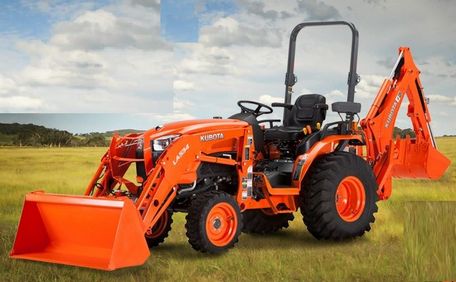

Kubota B2650

Production: 2013

PDF

• Download Kubota B2650 Operator's Manual

Production
Manufacturer:	Kubota
Type:	Compact Utility tractor
Original price:	$16,572 (2014 ROPS )
Original price:	$24,195 ( Cab )

Variants
B2650HSD:	ROPS
B2650HSDC:	Cab

Kubota B2650 Power
Engine (gross):	26 hp 19.4 kW
PTO (claimed):	19.5 hp 14.5 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Final drives:	spur gear
Differential lock:	standard
Steering:	power
Brakes:	wet disc
Cab:	Two-post foldable ROPS. Cab optional with air-conditioning.
Transmission:	hydrostatic

Hydraulics
Type:	open center
Valves:	1
Pump flow:	5 gpm 18.9 lpm
Total flow:	8.7 gpm 32.9 lpm
Steering flow:	3.7 gpm 14.0 lpm

Tractor hitch
Rear Type:	I
Control:	position control
Rear lift (at ends):	2139 lbs 970 kg
Rear lift (at 24"/610mm):	1676 lbs 760 kg

Power Take-off (PTO)
Rear PTO:	independent
Clutch:	hydraulic
Rear RPM:	540 (1.375)
Mid RPM:	2500

Electrical
Ground:	negative
ROPS Charging system:	dynamo
Cab Charging system:	alternator
ROPS Charging amps:	14.5
Cab Charging amps:	40
Battery CCA:	430
Battery volts:	12

Engine Detail
Kubota D1305
diesel
3-cylinder
liquid-cooled
Displacement:	77 ci 1.3 L
Bore/Stroke:	3.1x3.5 inches 79 x 89 mm
Emissions:	Tier IV
Power (gross):	26 hp 19.4 kW
Air cleaner:	dual paper elements
Rated RPM:	2500
Starter:	electric
Starter volts:	12
Oil capacity:	4.2 qts 4.0 L
Coolant capacity:	4.5 qts 4.3 L

Transmission
Type:	hydrostatic
Gears:	infinite (3-range) forward and reverse
Oil capacity:	16 qts 15.1 L

Dimensions
Wheelbase:	65.6 inches 166 cm
Length:	101.2 inches 257 cm
Width:	53.7 inches 136 cm
Height (ROPS):	88.4 inches 224 cm
Height (cab):	84.6 inches 214 cm
Weight:	1786 lbs 810 kg (ROPS)
2293 lbs 1040 kg (Cab)
Ground clearance:	14.6 inches 37 cm
