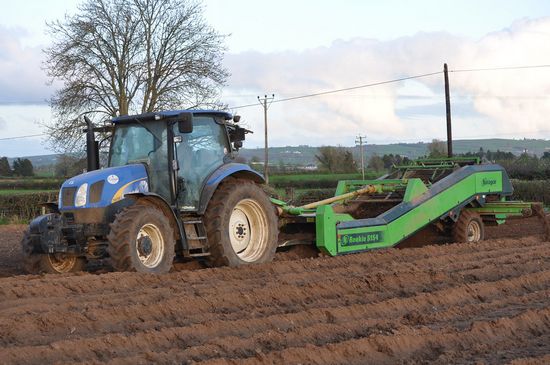

New Holland T6010
Contents:
Production | |
| Manufacturer: | New Holland |
New Holland T6010 Power | |
| Engine: | 99.2 hp 74.0 kW |
Mechanical | |
| Chassis: | 4x4 MFWD 4WD |
| Cab: | cab with A/C |
| Transmissions: | 24-speed |
| 48-speed | |
| 16-speed | |
| 32-speed | |
Hydraulics | |
| Type: | fixed displacement |
| close center load sensing (CCLS) optional on PLUS | |
| Pressure: | 2756 psi 190.0 bar |
| 3046 psi 210.0 bar (CCLS) | |
| Valves: | 3 (DELTA) |
| 4 (PLUS) | |
| Pump flow: | 16.6 gpm 62.8 lpm (DELTA) |
| 21.1 gpm 79.9 lpm (PLUS) | |
| 29.9 gpm 113.2 lpm (CCLS) | |
Power Take-off (PTO) | |
| Rear RPM: | 540/540E/1000 |
| Front RPM: | 1000 |
Engine Detail | |
| New Holland | |
| turbocharged | |
| 4-cylinder 8-valve | |
| liquid-cooled | |
| Displacement: | 273.7 ci 4.5 L |
| Bore/Stroke: | 4.094x5.197 inches 104 x 132 mm |
| Power: | 99.2 hp 74.0 kW |
| Rated RPM: | 2200 |
| Torque: | 295 lb-ft 400.0 Nm |
| Torque RPM: | 1400 |
Dimensions | |
| Wheelbase: | 95 inches 241 cm |
| 95.3 inches 242 cm (Terraglide axle) | |
| 99.2 inches 251 cm (SuperSteer axle) | |
| Length: | 169 inches 429 cm |
| Width: | 73.7 inches 187 cm |
| Height: | 107.3 inches 272 cm |
| Ground clearance: | 16.8 inches 42 cm |
