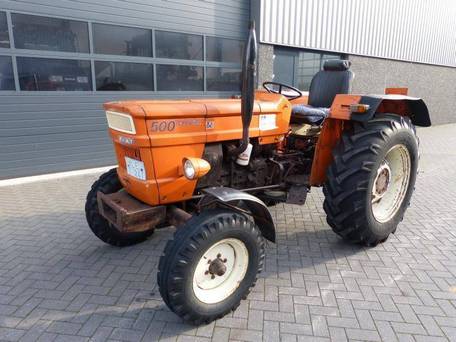

Fiat 500
Contents:
Production | |
| Manufacturer: | Fiat |
Fiat 500 Power | |
| Engine: | 50 hp 37.3 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Transmission: | 8-speed |
Hydraulics | |
| Pump flow: | 6.3 gpm 23.8 lpm |
Tractor hitch | |
| Rear Type: | II/I |
| Rear lift: | 3087 lbs 1400 kg |
Power Take-off (PTO) | |
| Rear RPM: | 540 |
Engine Detail | |
| Fiat 8035 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 158.16 ci 2.6 L |
| Bore/Stroke: | 3.94x4.33 inches 100 x 110 mm |
| Power: | 50 hp 37.3 kW |
| Rated RPM: | 2600 |
Transmission | |
| Gears: | 8 forward and 2 reverse |
| Four gears, plus reverse, in two ranges. | |
Dimensions | |
| 2WD Wheelbase: | 75.6 inches 192 cm |
| Length: | 122.8 inches 311 cm |
| Height (hood): | 52.4 inches 133 cm |
| 2WD Weight: | 4023 lbs 1824 kg |
| 4WD Weight: | 4961 lbs 2250 kg |
