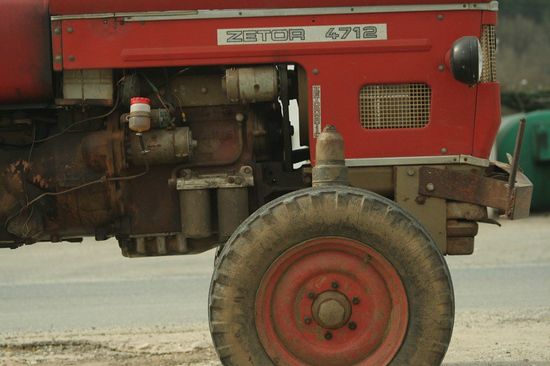

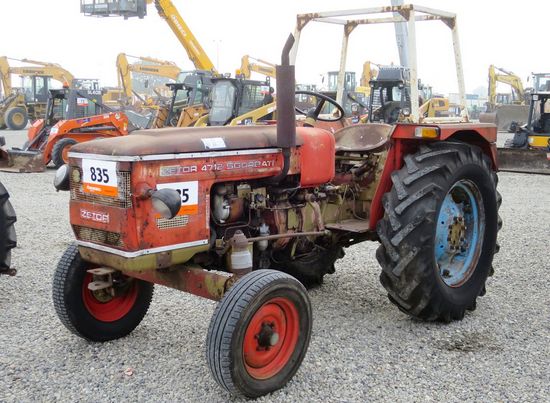

Zetor 4712

Production: 1972 - 1978

Production
Manufacturer:	Zetor
Factory:	Brno, Czechoslovakia

Variants

open-station

cab

Zetor 4712 Power
Engine:	45 hp 33.6 kW
PTO (claimed):	42 hp 31.3 kW

Mechanical
Chassis:	4x2 2WD
Brakes:	differential hydraulic drum
Trailer brakes:	air optional
Cab:	Open operator station.
Transmission:	10-speed

Hydraulics
Type:	Zetormatic
Pressure:	2321 psi 160.0 bar
Valves:	1
Pump flow:	5.3 gpm 20.1 lpm

Tractor hitch
Rear lift:	2,646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/ground
1000 (optional)

Engine Detail
Zetor Z4701
diesel
3-cylinder
liquid-cooled
Displacement:	158.2 ci 2.6 L
Bore/Stroke:	3.937x4.331 inches 100 x 110 mm
Power:	45 hp 33.6 kW
Compression:	17.9:1
Rated RPM:	2200

Transmission
Gears:	10 forward and 2 reverse

Dimensions
Wheelbase:	78.27 inches 198 cm
Weight:	4,519 lbs 2049 kg
Rear tread:	50.4 to 70.9 inches 128 to 180 cm
