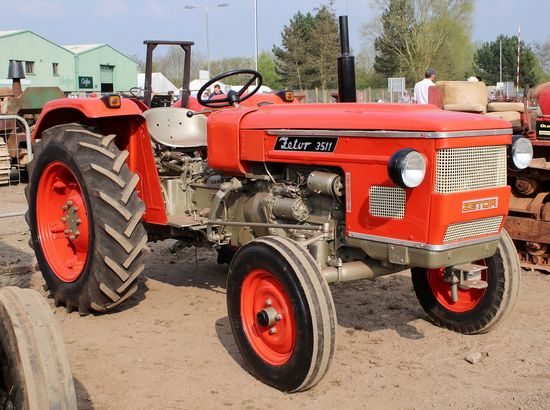

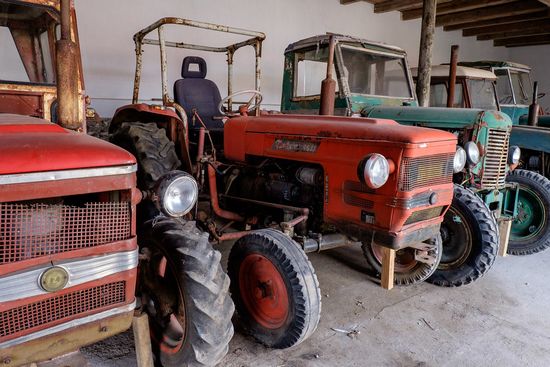

Zetor 3511
Contents:
Production | |
| Manufacturer: | Zetor |
| Factory: | Brno, Czechoslovakia |
Variants | |
| 2WD | |
| 4WD |
Zetor 3511 Power | |
| Engine: | 39 hp 29.1 kW |
| PTO (claimed): | 35.5 hp 26.5 kW |
Mechanical | |
| Chassis: | 4x2 2WD |
| Final drives: | bull gear |
| Steering: | manual |
| Brakes: | mechanical drum |
| Cab: | Open operator station. |
| Transmission: | 10-speed gear |
Tractor hitch | |
| Rear Type: | II |
| Rear lift: | 2205 lbs 1000 kg |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540/1000 |
Engine Detail | |
| Zetor Z3001 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement: | 142.7 ci 2.3 L |
| Bore/Stroke: | 3.74x4.331 inches 95 x 110 mm |
| Power: | 39 hp 29.1 kW |
| Compression: | 17:1 |
| Rated RPM: | 2000 |
| Torque: | 106 lb-ft 143.7 Nm |
| Torque RPM: | 1500 |
| Starter type: | electric |
Transmission | |
| Type: | gear |
| Gears: | 10 forward and 2 reverse |
| Clutch: | dry disc |
| Five gears, plus reverse, in two ranges. | |
Dimensions | |
| Wheelbase: | 75.59 inches 191 cm |
| Weight: | 3351 lbs 1520 kg |
