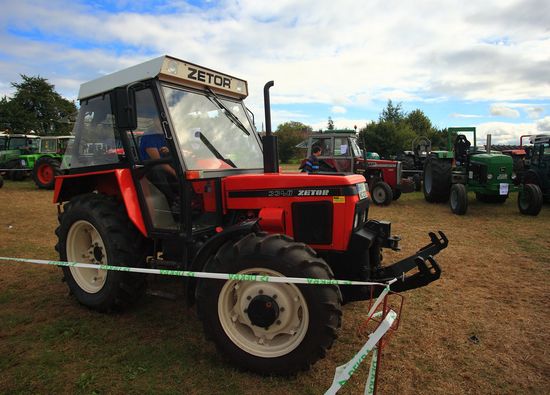

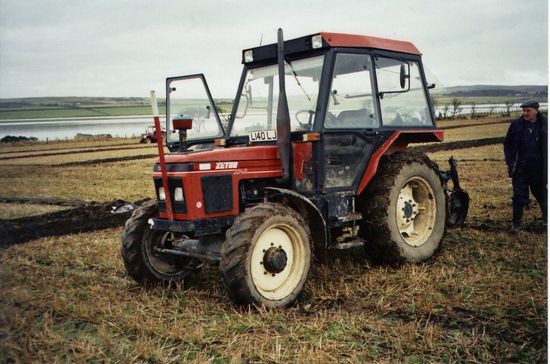

Zetor 3340

Production: 1993 - 1997

Production
Manufacturer:	Zetor
Type:	Utility tractor
Factory:	Brno, Czech Republic
Original price:	$19,000 (1999 )

Variants

2WD

4WD

Zetor 3340 Power
Engine:	46 hp 34.3 kW
PTO (claimed):	43 hp 32.1 kW
Drawbar (tested):	37.96 hp 28.3 kW
PTO (tested):	42.51 hp 31.7 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	hydraulic dry disc
Trailer brakes:	pneumatic*Optional
hydraulic*Optional
Cab:	Cab standard, radio optional.
Transmissions:	10-speed synchromesh
10-speed

Hydraulics
Type:	open center
Pressure:	2,611 psi 180.0 bar
Valves:	1
Total flow:	8.5 gpm 32.2 lpm
Steering flow:	4 gpm 15.1 lpm

Tractor hitch
Rear Type:	II
Rear lift:	3850 lbs 1746 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	55
Battery CCA:	950
Battery volts:	12

Engine Detail
Zetor Z5201
diesel
3-cylinder
liquid-cooled
Displacement:	164.5 ci 2.7 L
Bore/Stroke:	4.016x4.331 inches 102 x 110 mm
Power:	46 hp 34.3 kW
Air cleaner:	oil bath with pre-cleaner
Compression:	17:1
Rated RPM:	2200
Starter volts:	12

Dimensions
Wheelbase:	884.3 inches 2246 cm
Length:	144.3 inches 366 cm
Width:	72.8 inches 184 cm
Height (cab):	102.2 inches 259 cm
Height (exhaust):	103.7 inches 263 cm
Operating weight:	7,077 lbs 3210 kg
Ground clearance:	15.2 inches 38 cm
