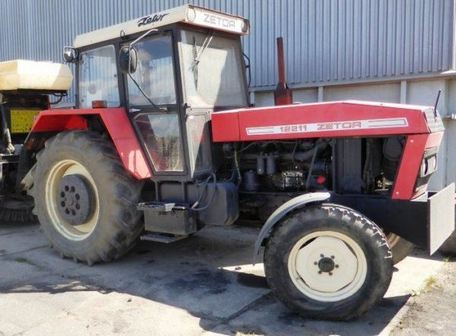

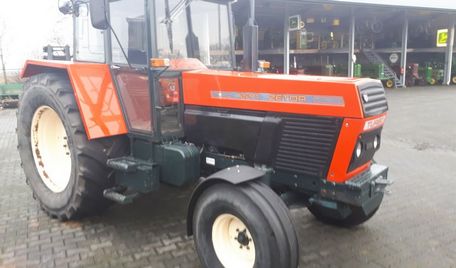

Zetor 12211

Production: 1990 - 1997

Production
Manufacturer:	Zetor
Type:	Row-Crop tractor
Factory:	Brno, Czechoslovakia
Original price:	$29,000 (1992 )

Variants

2WD

4WD

Zetor 12211 Power
Engine:	120 hp 89.5 kW
PTO (claimed):	105 hp 78.3 kW

Mechanical
Chassis:	4x2 2WD
Steering:	power
Brakes:	hydraulic dry disc
Trailer brakes:	pneumatic
hydraulic*Optional
Cab:	Cab standard with heater.
Transmission:	16-speed synchromesh

Hydraulics
Type:	open center
Pressure:	2800 psi 193.1 bar
Valves:	2
Total flow:	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type:	II
Rear lift:	8650 lbs 3923 kg

Power Take-off (PTO)
Rear PTO:	independent
Rear RPM:	540/1000

Electrical
Charging system:	alternator
Charging amps:	55

Engine Detail
Zetor Z 8701.12
diesel
6-cylinder
liquid-cooled
Displacement:	417.5 ci 6.8 L
Bore/Stroke:	4.33x4.72 inches 110 x 120 mm
Power:	120 hp 89.5 kW
Fuel system:	direct injection
Rated RPM:	2200
Starter type:	electric
Coolant capacity:	24 qts 22.7 L

Transmission
Type:	synchromesh
Gears:	16 forward and 8 reverse
Clutch:	380mm mechanical dry disc
Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier.

Dimensions
Wheelbase:	106.1 inches 269 cm
Length:	173.2 inches 439 cm
Width:	76.8 inches 195 cm
Height (cab):	106.7 inches 271 cm
Height (exhaust):	111.8 inches 283 cm
Weight:	10075 lbs 4570 kg
Ballasted weight:	11508 lbs 5220 kg
Ground clearance:	16.5 inches 41 cm
Front tread:	53.2 to 70.9 inches 135 to 180 cm
Rear tread:	59.1 to 73.8 inches 150 to 187 cm
