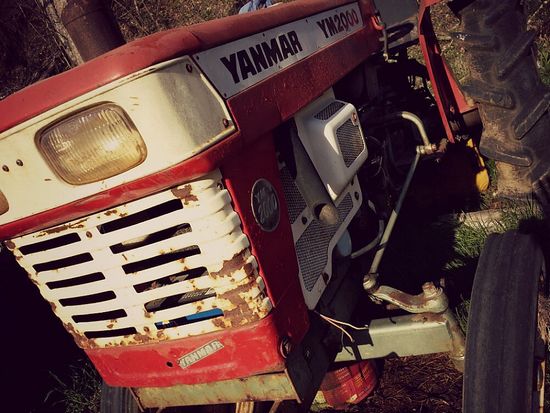

Yanmar YM2000

Production: 1975 - 1977

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Variants
YM2000:	2WD
YM2000D:	4WD

Yanmar YM2000 Power
Engine:	20 hp 14.9 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Differential lock:	mechanical rear
Steering:	manual
Brakes:	mechanical drum
Cab:	Open operator station.
Transmission:	8-speed gear

Tractor hitch
Rear Type:	I
Rear lift:	1433 lbs 650 kg

Power Take-off (PTO)
Rear RPM:	540/750/1000

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 2TR20
diesel
2-cylinder
liquid-cooled
Displacement:	69.9 ci 1.1 L
Bore/Stroke:	3.54x3.54 inches 90 x 90 mm
Power:	20 hp 14.9 kW
Rated RPM:	2400
Starter volts:	12

Transmission
Type:	gear
Gears:	8 forward and 2 reverse
Clutch:	dry disc

Dimensions
Wheelbase:	58.7 inches 149 cm
Length:	99.5 inches 252 cm
Width:	45.1 inches 114 cm
Height:	69.9 inches 177 cm
2WD Shiping weight:	1664 lbs 754 kg
4WD Shiping weight:	1940 lbs 879 kg
Ground clearance:	13.8 inches 35 cm
