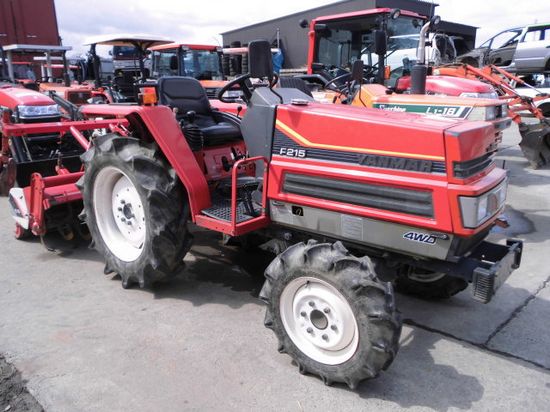

Yanmar F215

Production: 1987 - 1992

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Variants

2WD gear

4WD gear

2WD power shift

4WD power shift

Yanmar F215 Power
Engine:	20.7 hp 15.4 kW

Mechanical
Chassis:	4x2 2WD
4x4 MFWD 4WD
Cab:	Open operator station.
Transmission:	9-speed gear

Tractor hitch
Rear Type:	JIS1

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	574@2500 698@2500 958@2500 1293@2500

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	16
Battery volts:	12
Battery AH:	75

Engine Detail
Yanmar 3TNB82
diesel
3-cylinder
liquid-cooled
Displacement:	85.1 ci 1.4 L
Bore/Stroke:	3.23x3.46 inches 82 x 88 mm
Power:	20.7 hp 15.4 kW
Rated RPM:	2500
Starter volts:	12

Transmission
Type:	gear
Gears:	9 forward and 3 reverse
Three gears in three ranges.

Dimensions
2WD Wheelbase:	59.5 inches 151 cm
4WD Wheelbase:	60 inches 152 cm
Length:	111.8 inches 283 cm
Width:	48.8 inches 123 cm
Height:	56.9 inches 144 cm
2WD Weight:	2028 lbs 919 kg
4WD Weight:	2216 lbs 1005 kg
2WD Ground clearance:	11.7 inches 29 cm
4WD Ground clearance:	11 inches 27 cm
2WD Front tread:	35.8 inches 90 cm
4WD Front tread:	40.2 inches 102 cm
Rear tread:	38.2/42.9 inches 97/108 cm
