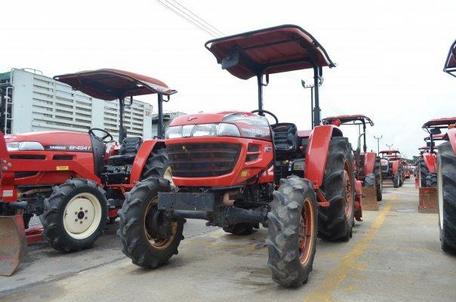

Yanmar EF453

Production: 2009

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Yanmar EF453 Power
Engine (gross):	45 hp 33.6 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Steering:	power
Brakes:	wet disc
Cab:	Two-post ROPS.
Transmission:	9-speed synch shuttle

Tractor hitch
Rear Type:	I
Rear lift (at ends):	2976 lbs 1349 kg

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	547@2700 741@2700

Engine Detail
Yanmar 4TNV88
diesel
4-cylinder
liquid-cooled inline
Displacement:	133.6 ci 2.2 L
Bore/Stroke:	3.46x3.54 inches 88 x 90 mm
Power (gross):	45 hp 33.6 kW
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Transmission
Type:	synch shuttle
Gears:	9 forward and reverse
Clutch:	260mm dry disc
Three gears in three ranges with shuttle shift.

Dimensions
Wheelbase:	72.1 inches 183 cm
Length:	127.2 inches 323 cm
Width:	63.2 inches 160 cm
Height:	96.9 inches 246 cm
Weight:	3417 lbs 1549 kg
Ground clearance:	14 inches 35 cm
