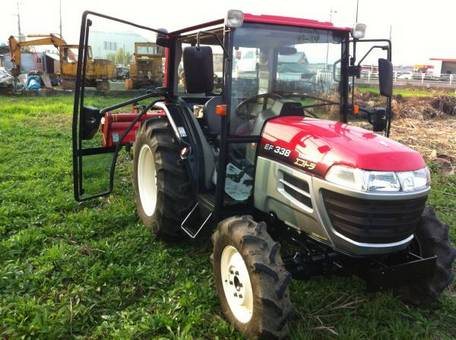

Yanmar EF338

Production: 2002 - 2004

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Variants

ROPS

Cab

High-speed ROPS

high-speed cab

Yanmar EF338 Power
Engine:	37.4 hp 27.9 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Transmission:	16-speed four-speed power shift

Tractor hitch
Rear Type:	JIS1
Rear lift:	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO:	540 (1.375)
Engine RPM:	555@2700 784@2700 991@2700 1296@2700 -622@2700

Electrical
Ground:	negative
Battery volts:	12

Engine Detail
Yanmar 3TNV84T
turbocharged diesel
3-cylinder
liquid-cooled
Displacement:	91.3 ci 1.5 L
Bore/Stroke:	3.31x3.54 inches 84 x 90 mm
Power:	37.4 hp 27.9 kW
Rated RPM:	2700
Starter:	electric
Starter volts:	12

Transmission
Type:	four-speed power shift
Gears:	16 forward and reverse
Four power shift gears in four ranges, with shuttle.

Dimensions
Wheelbase:	70.9 inches 180 cm
Length:	125.2 inches 318 cm
Width:	59.3 inches 150 cm
Height (ROPS):	76.2 inches 193 cm
Height (cab):	77.6 inches 197 cm
ROPS Weight:	3263 lbs 1480 kg
Cab Weight:	3616 lbs 1640 kg
Ground clearance:	12.6 inches 32 cm
Front tread:	47.8 inches 121 cm
Rear tread:	46.1 to 57.9 inches 117 to 147 cm
