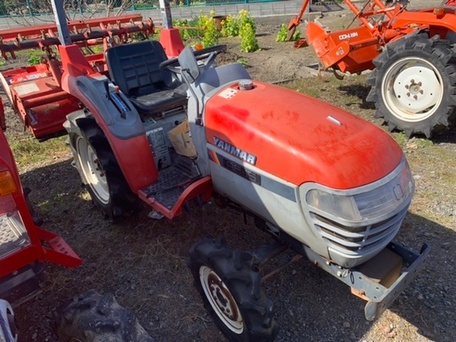

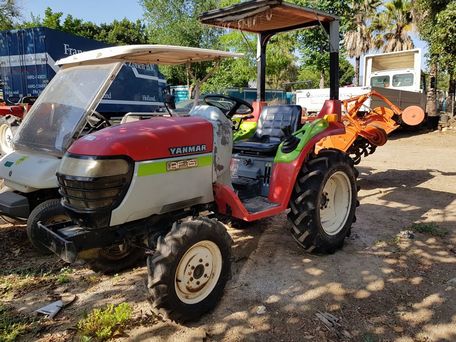

Yanmar AF-15

Production: 1992 - 1996

Production
Manufacturer:	Yanmar
Type:	Compact Utility tractor

Yanmar AF-15 Power
Engine:	14.8 hp 11.0 kW

Mechanical
Chassis:	4x4 MFWD 4WD
Cab:	Two-post ROPS.
Transmissions:	8-speed
12-speed creeper

Power Take-off (PTO)
Rear RPM:	540 (1.375)
Engine RPM:	558@2500 805@2500 1228@2500 -745@2500

Electrical
Ground:	negative
Battery volts:	12
Battery AH:	45

Engine Detail
Yanmar 3TNA72
diesel
3-cylinder
liquid-cooled
Displacement:	53.6 ci 0.9 L
Bore/Stroke:	2.83x2.83 inches 72 x 72 mm
Power:	14.8 hp 11.0 kW
Rated RPM:	2500
Starter:	electric
Starter volts:	12

Dimensions
Wheelbase:	53.2 inches 135 cm
Length:	103.2 inches 262 cm
Width:	41.3 inches 104 cm
Height:	72.2 inches 183 cm
Weight:	1587 lbs 719 kg
Ground clearance:	11.4 inches 28 cm
Front tread:	32.3 inches 82 cm
Rear tread:	31.9 inches 81 cm
